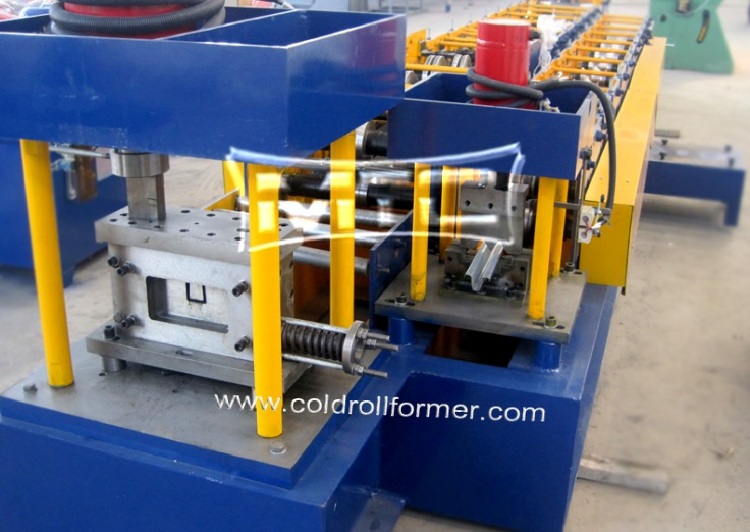

Stud and Track Roll Forming Machine



產品型號：MXM1904

產品分類：自動化設備/產業機械 / 其他產業機械 / 建材機械



立即線上詢問





產品特色



Technical Parameters of stud and track roll forming machine:
Working Flowing : Decoiler_Feeding guide_Roll Forming_Cutting Device_Runout table

Summary for stud and track roll forming machine line
Material Thickness: 0.7-1.2 mm
Main Power: 7.5KW
Machine Diameter: About 8500mm(L)x300mm(W)x1000mm (H)
Weight of machine: About 4 Ton

Technical Data of stud and track roll forming machine line:
Decoiler
Weight Capacity Of Decoiler: 5 Ton

Stud and track roll forming machine:
Roll Diameter: 70mm
Forming Roller stand: 15 stations;
Main Axis material: First grade 45# steel, heated and quenched
Roller material: 45# steel coated with hard chrome.
Forming Speed: 8-12 m/min
Dive Type: 1.0" Chain of transmission
Machine Frame stand: Welded structural steel
Thickmess of Fame Steel: 18mm
Main Power: 7.5KW

Cutting Device&Hydraulic Station of stud and track roll forming machine line:
Cutting type: Hydraulic cutting
Hydraulic power: About 3 Kw
Hydraulic Blade and cutter material: Cr12 MOV, quenching process
Cutting length tolerance: +/-2mm

Electrical Control System stud and track roll forming machine:
Voltage: 380V, 3 Phase 50Hz
Electrical control system: Japanese Panasonic PLC Board
Encoder Frequency Control System: Omron Brand
Touch Screen: Panasonic Brand
Szie of PLC Control Board: 700mm(L)x300mm(W)x1000mm(H)

Contact Person:Tony Tang
Cell:+86-18001958638
Email: [email protected]
MSN: [email protected]
Skype: tangleitony
Website: http://www.mtc-china.com
OR: http://www.coldrollformer.com
