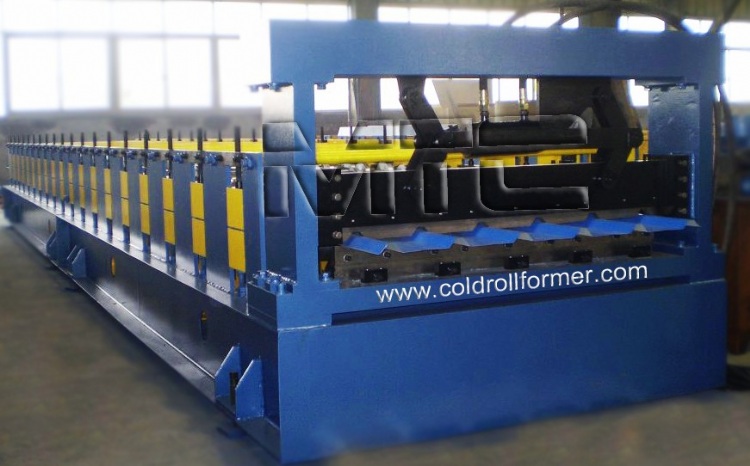

Trapezoidal Roofing Sheet Roll Forming Machine



產品型號：MXM1307

產品分類：自動化設備/產業機械 / 其他產業機械 / 建材機械



立即線上詢問





產品特色



Trapezoidal Roofing Sheet Forming Machine Flow Chart: Uncoiling_guilding_Roll Forming_Hydraulic Cutting_Panels to the Rack

Components of Trapezoidal Roofing Sheet Forming Machine:
Hydraulic Uncoiler: 1set
Roll Forming Machine: 1set
PLC Control System: 1set
Hydraulic Cutting: 1 set
Exit Rack: 1 PCS

Technical data of Trapezoidal Roofing Sheet Forming Machine:
Application for trapezoidal roofing sheets;
Electric requirement: 380V/3pH/50Hz
Main power: 5.5 kw
Weight: 5 tons
Forming Station: 16 stations.
Machine installation dimension: (LxWxH) 8mx1.5 mx1.3 m
Forming speed: 8-12 m per min
Thickness 0.3 - 0.8 mm, 0.5 mm for test run and inspection
Material width: 1200MM
Effective width of roof profile: 1000MM
Max. Material strengthen: Cold rolled, pre-painted or galvanized coils or galvalume coils
Cutting tolerance: Approx. 2mm

Features of Trapezoidal Roofing Sheet Forming Machine:
-. It makes beautiful trapezoidal roofing sheets efficiently;
-. Interconvert automatically two levels of speed when stop and start.
-. Automatically shearing at any length with pre-setting quantity (10 programs).
-. Signal feedback from encoder showing current length of product.
-. Automatically alarm to rear shearing before the order finished.
-. Hydraulic cutting on the trapezoidal sheet roll forming machine
-. Rolling wheel and shearers made of alloy steel, thermo-hardened, chromium plating get hardness 60-65HRC.
