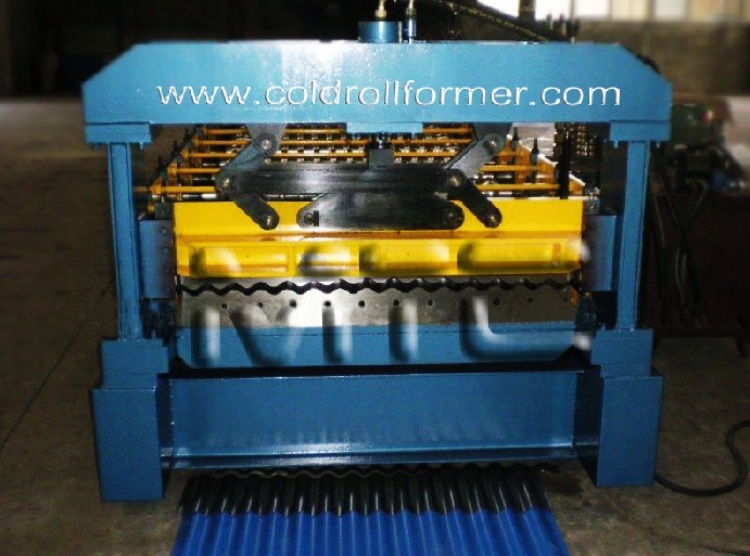

Corrugated Sheet Roll Forming Machine
產品型號:MXM1302
產品分類:工具機產業機械 / 金屬成型工具機 / 薄板壓造成型機
產品特色
Corrugated Sheet Forming Machine,Corrugated Roll Forming Machine:俑aterial width: 1220mm.
The thickness of Coil: 0.3mm-1.0mm.
Application: wall sheet and roof sheet
The overall dimensions: 8600mmX1500mmX1300mm
Total weight: 5.6T T
Main Power: 7.5 KW
The main parts of equipment
Manual Uncoiler………………………………………………………...1 set
Feeding Guider……………………………………………….…..….….1 unit
Roll forming machine………………………………….……….….…1 set
Hydraulic Cutting system……………………………….…………..1 unit
PLC Control System………………………………………….………...1 unit
Product Rack………………………………………………..….…………2 pcs
Contact Person:Tony Tang
Cell:+86-18001958638
Email: tony@mtc-china.com
MSN: tanglei_tony@hotmail.com
Skype: tangleitony
Website: http://www.mtc-china.com
OR: http://www.coldrollformer.com
產品規格
Corrugated Sheet Forming Machine,Corrugated Roll Forming Machine: Technical Specifications: Introductions Of the Parts Coil Width: 1250mm Max. Material Thickness: 0.3mm—0.8mm Loading weight: 8 Tons Forming speed:8-12m/min Forming stations: 20 stations Construction Structure: welded with 36 # I-steel Material of Shafts: 45# steel with rough finished and then refined finished. Diameter of the shafts:70mm Material of Rollers:high quality 45#steel coated with hard chromium 0.05mm Transmission: Transmitted by the chain and gear. Main Power:7.5KW. Material of cutting blade:Cr12 with quenched treatment 60-62 Hydraulic Power:3.5KW. Cutting Length and Quantity: Clients can set the required length and quantity on the PLC touch screen Control System:Panasonic PLC Control, LCD screen,touch screen, frequency converter Voltage: 380V/50HZ/3phase OR based on required standard. Automatically measure the length and quantity Contact Person:Tony Tang Cell:+86-18001958638 Email: tony@mtc-china.com MSN: tanglei_tony@hotmail.com Skype: tangleitony Website: http://www.mtc-china.com OR: http://www.coldrollformer.com
