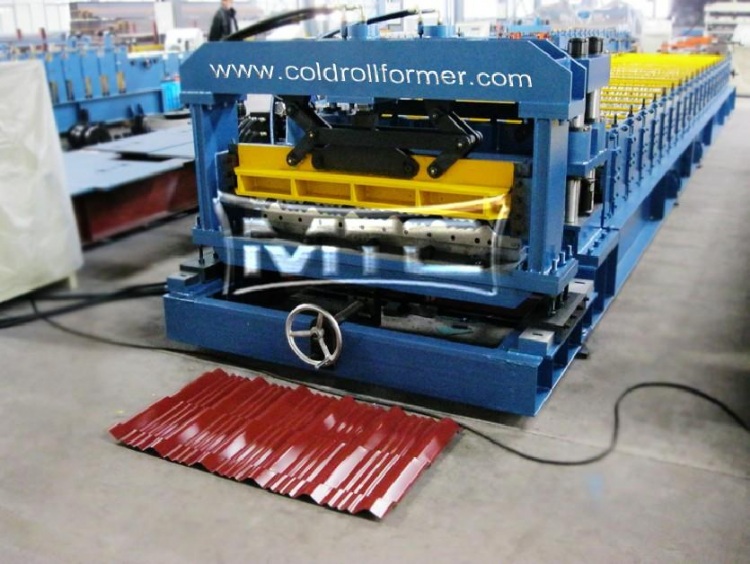

Step Roofing Glazed Tile Roll Forming Machine



產品型號：MXM1306

產品分類：自動化設備/產業機械 / 其他產業機械 / 建材機械



立即線上詢問





產品特色



Flow cart of Glazed Tile Roll Forming Machine:
Decoiler-Feeding Guide-Roll Forming Machine-Hydraulic Pressing%Cutter-Runout Table

Technical Parameters of glazed tile roll forming machine:
Maual Uncoiler:
Coil inner diameter: 450mm-510mm
Max weight of loading: 5 Tons
Thickness of Material: 0.3_0.6mm
Width of Material: 1250mm.

glazed tile roll forming machine:
Roller Stations: 16 stations
Forming Speed: 6_8m/m.
Material of shaft: 45# steel.
Diameter of shaft: 70mm
Material of roller: 45#steel Polished and coated with chrome 0.05mm
Bearing: 6212
Transmission: By 1.2" chain.
Main Power: 7.5 KW
Main Construction: 36# "H" beam steel.
Installation dimension about(L*W*H): 8.2m*1.5m*1.5m
Total weight: Appro of glazed tile roll forming machine. 7Tons
Voltage: 380V/50/60Hz/3 phase

Hydraulic Pressing & Cutting and Electrical Parts for glazed tile roll forming machine:
Hydraulic station power: 3kw
Material of Cutting Blade: Cr12 steel through heat treatment with HRC58-60
Material of Pressing Mould: Press Module Material: 40GCr
Control: PLC Control Box, touch screen, frenquency converter.

The main parts of glazed tile roll forming machine:
Manual uncoiler 1 unit
Roll Forming Machine 1 set
Hydraulic Pressing 1 unit
Hydraulic Cutting system 1 unit
PLC Control System 1 PCS
Runout Table 2 PCS

The main structure of the glazed tile roll forming machine: The machine is constituted of passive-type hydraulic decoiler, guiding and feeding parts, forming parts, ladder profiling, cutting parts, hydraulic system, PLC computer controlling system, exit rack.

Contact Person:Tony Tang
Cell:+86-18001958638
Email: [email protected]
MSN: [email protected]
Skype: tangleitony
Website: http://www.mtc-china.com
OR: http://www.coldrollformer.com
