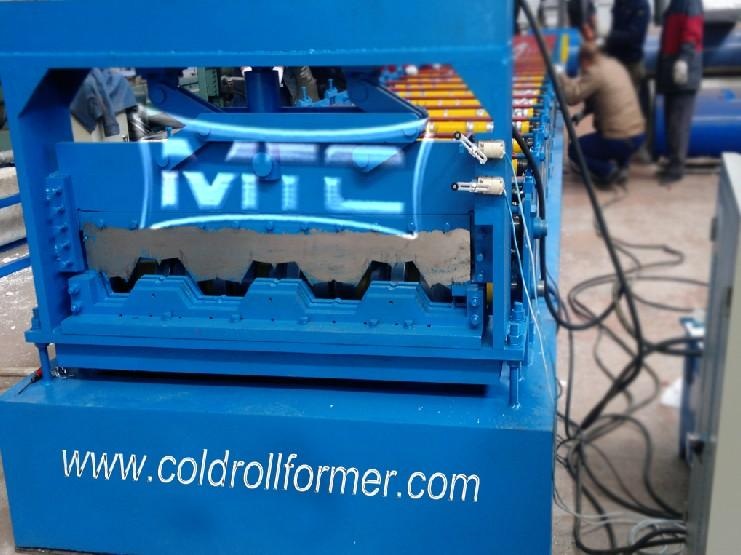

Steel Floor Decking Roll Forming Machine



產品型號：MXM1501

產品分類：自動化設備/產業機械 / 其他產業機械 / 建材機械



立即線上詢問





產品特色



Layout of the Decking Floor Roll Forming Machine:
Uncoiling_Feeding Guide_Roll Forming_Hydraulic Cutting_Runout Table

Detailed specs of Decking Floor Roll Forming Machine:
Uncoiler: Manual
Thickness of Material: 0.7mm_1.5mm(16G-22G)
Coil Width: 1016mm(40")
Effective Width: 914mm(36")
Coil Weight: 5 Tons
Coil OD: 1500mm
Coil ID: 508--610mm

Feeding Guide for Decking Floor Roll Forming Machine.
2 Rollers to guide the material into the machine
Both ends of the flat roll adops bearing structure.

Decking Floor Roll Forming Machine:
Roller Stations: 30 stations
Diameter of Shaft: 75mm
Material of Shaft: 45# steel.
Material of roller: 45#steel with elctroplating treatment after quenching treatment.
Forming speed: 8-12m/min
Siding Plate: 36 'H' Steel ( Thickness 18mm).
Transmission: 1.0" Chains-bracket.
Bearing Model: 6210
Main Power: 2x11KW.
Overall Dimmnsions of Decking Floor Roll Forming Machine: 13500mmx1500mmx1300mm
Weight of the machine: Appro. 12 Tons

Cutting and Electrical Parts of Decking Floor Roll Forming Machine:
Hydraulic Cutting: Automatically cutting according to the length and quantities the clients set on the touch screen
Hydraulic Power: 7.5KW
Material of Cutting Blades: Cr12MOV.
PLC Control Box: 700mmx1000mmx300mm
Computer Control System: Panasonic PLC.
Pressure of Hydraulic Station: More than 16Mpa

Contact Person:Tony Tang
Cell:+86-18001958638
Email: [email protected]
MSN: [email protected]
Skype: tangleitony
Website: http://www.mtc-china.com
OR: http://www.coldrollformer.com
