產品型號：SC-CSM

編織布放布裝置
編織布預拉裝置
自動開口裝置
熱切裝置
摺底裝置
編織袋縫袋裝置
計數與堆疊輸送裝置

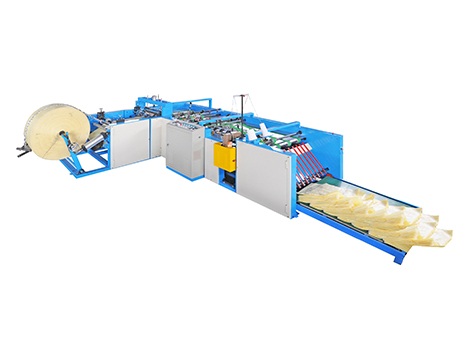

Cutting and Sewing Machine(SC-CSM)
Model	SC-CSM32	SC-CSM45
Fabric Roll Width	400 - 800 mm
Max. Fabric Roll Dia.	ø1200 mm
Cutting Length	600 - 1250 mm
Cutting Length Accuracy	± 5 mm	± 1 mm
Production Capacity	24 - 32 bags/min	30 - 40 bags/min
Cutting Type	Flat High Quality Alloy Steel Cutter
Mouth Open Device	1 set
Bottom Folding Width	20 - 30 mm
Bag Sewing Unit	DN-2HS	DKN-3
Stitch Type	Double Thread Chain Stitch
Stitch Width	6 - 12 mm	3.8 – 8 mm
Delivery	Counting Stack Type Belt Conveyor
Main Drive Motor	2 HP x 2, 1 HP x 2, 1/4 HP x 1	2 HP x 2, 3 HP Servo Motor x 1, 1 HP x 2, 1/4 HP x 1
Air Compressor	3 HP
Electric Consumption	9 kw	11 kw
Dimension	6000 x 3800 x 1300 mm	6000 x 4000 x 1150 mm
Weight	2800 kg	3000 kg
※All specifications are subject to change without notice.
