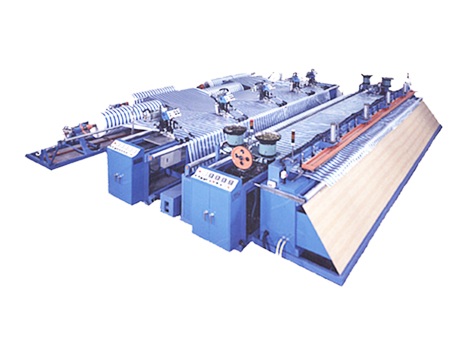

HDPE帆布多頭熱風熔接機
產品型號:SC-MW
產品特色
帆布布捲放布架
多頭熱風熔接裝置
操作平台
存布裝置
自動雞眼裝置
熱切裝置
控制箱
產品規格
http://www.sanchyi.com/products-category1-1.php?id=32
Multi-Head Welding Machine(SC-MW) | ||
Model | SC-MW7-12M | |
Feature | Applicable Material | HDPE Tarpaulin |
Max. Welding Width | 12 m | |
Max. Welding Speed | 20 m/min | |
Welding Type | Overlap Welding | |
Side Hemming | ||
Side Hemming with Rope Insertion | ||
Tarpaulin Roll Stand x 6 sets | Load Weight of Tarpaulin Stand | 1.5 - 2 ton |
Width of Tarpaulin Roll | 6’ - 8’ (adjustable) | |
Position Control | Electric Power Control Device(Left/Right) | |
Dimension | L340 x W90 x H80 cm | |
Hot Air Welding Unit x 7 heads | Electric Power | AC 380V / 50Hz |
Drive Motor | 5 HP | |
Heater Capacity | 5 kw x 7 sets | |
Thermo Control | 7 sets | |
Hot Air Blower | 1/2 HP x 7 sets | |
Max. Welding Temp. | 700 °C | |
Position Control | Electric Power Control Device(Left/Right) | |
Air Compressor | 2 HP | |
Dimension | L1300 x W60 x H175 cm | |
Operating Platform | Width of Travel | 35 cm |
Dimension | L1300 x W35 x H35 cm | |
Tarpaulin Holding Unit | Drive Motor | 1/2 HP x 3 sets |
Dimension | L1300 x W115 x H180 cm | |
Eyeleting Unit | Drive Motor | 1/4 HP x 4, 2 HP x 1 |
Automatic Vibrating and Feeding Device | 4 sets | |
Two-Sides Eyelet Position Control | Automatic | |
Eyelet Material | Steel Eyelet | |
Dimension | L1400 x W60 x H180 cm | |
Cutting Unit | Drive Motor | 3 HP x 1, 1/2 HP x 1 |
Length Controller | 1 set | |
Quantity Controller | 1 set | |
Air Compressor | 5 HP | |
Dimension | L1400 x W60 x H175 cm | |
※All specifications are subject to change without notice |
