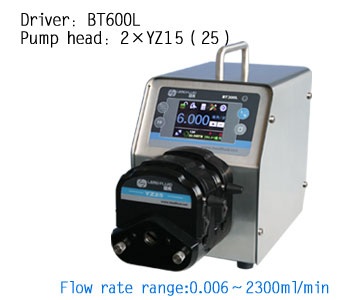

BT600L Intelligent Flow Peristaltic Pump,Chemical Resistance ,304SS casing pumps
產品型號:BT600L Intelligent Flow Peristaltic hose Pump
產品分類:自動化設備/產業機械 / 自動化設備 / 自動送料設備
產品特色
1.Beautiful, economical and practical for laboratory environments;
2.Color touch screen, making the information more intuitive peristaltic pump and the operation more convenient;
3.Intelligence expert operating system can guarantee smooth operation even the operator never used such kind of machine before;
4.Unique dispensing function, simple operation, suitable for general accuracy of the liquid-dispensing, reduce the human operator error, improve work efficiency;
5.Calibrating flow function.
6.Intelligent temperature-control technology reduces working noise.
7.Reversible direction, start/stop and full speed ,state memory (power-down memory).
8.Speed resolution is above 0.1 rpm.
9.Stainless steel housing ,easy to clean ,excellent resistance to the corrosion of the acid ,alkali,sodium and the organic solvents..
10.Super anti-interference feature ,wide input voltage range, acceptable for the complex power environment.
11.Optional footswitch or timer for dispensing fluid.
12.RS485 interface ,MODBUS protocol is available ,easy to connect other equipments.
For pump head: YZ15,YZ25
Flow range: 0.006~2300(ml / min)
產品規格
Technical parameters;
For pump head: YZ15,YZ25,T15,YT25 pps pump head
Flow range: 0.006~2900(ml / min)
Speed range: 0.1 ~ 600 rpm Speed resolution: 0.1 rpm, with accuracy 0.5% Display: 65535 color LCD + touch screen Supply Voltage: AC220V &AC110V, 50/60Hz Power ratio: less than 60W Working Environment Temperature: 0 ~ 40 centigrade. Relative humidity 80% Protection level: IP31 Dimensions: (L*W * H) 223mm*150mm*195mm Weight: 5.2kg
Drive type |
Pump head |
Channel number |
Tubing(mm) |
One channel flow rate (ml/min) |
BT600L |
YZ15 |
1,2 |
13#14#16#19#25#17# |
0.006∼1700 |
YZ25 |
1,2 |
15#24 |
0.1667∼1700 |
|
YT15 |
1,2 |
13#14#16#19#25#17#18# |
0.006∼2300 |
|
YT25 |
1 |
15#24#35#36# |
0.1667∼2900 |
