• BT50S/102S micrometeor speed variable peristaltic pumps



BT50S/102S micrometeor speed variable peristaltic pumps



產品型號：BT50S/102S

產品分類：自動化設備/產業機械 / 其他產業機械 / 其他



立即線上詢問





產品特色

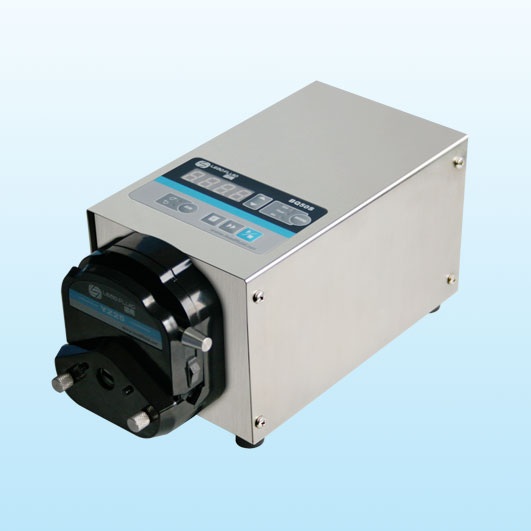

BT50S/102S Micrometeor Speed –Variable Peristaltic Pump
1.Four-figure digital LED indicator display working speed ;
2.Intelligent expert operating system can guarantee smooth operation
3.Easy dispensing function ,it realizes the repeat timing quantitative dispensing .
4.Can drive multi-channels and various and various types of pump heads.
5.Stainless steel housing ,easy to clean ,excellent resistance to the corrosion of the acid,alkali,sodium and the organic solvents.
6.Internal double-desk isolation structure ,circuit board with conformal coating makes it dust-proof and moisture-proof.
7.External high-low electrical level controls the start/stop ,reversible direction and easy dispensing function ,optically coupled isolator, external analog adjusts the rotate speed .
8.RS485 interface ,MODBUS communication protocol is available ,easy to connect with other equipments.
9.Optional footswitch or timer for dispensing fluid .
For pump head: YZ15，YZ25，YT15,25,DG(1,2)
Flow range: 0.00016~480(ml / min).
Technical parameters:
Speed range: 0.1 ~ 100 rpm
Speed resolution: 0.1 rpm, flow accuracy 0.5%
Supply Voltage: AC220V &AC110V, 50/60Hz
Power ratio: less than 30W
Working Environment Temperature: 0 ~ 40 centigrade. Relative humidity 80%
Protection level: IP31
Dimensions: (L *W * H) 218mm *127mm *122mm
Weight: 2.7kg.

External control functions:
External control start and stop, external control orientation, Isolated, TTL level input; 0-5V/10V, 4-20mA, 0-10KHz speed control input; Support RS485 bus, MODBUS communication protocol.
