• Multichannel peristaltic pumps,chemical resistance , practical peristaltic pump



Multichannel peristaltic pumps,chemical resistance , practical peristaltic pump



產品型號：BT100F-1+DG-24

產品分類：自動化設備/產業機械 / 自動化設備 / 自動化輸送設備



立即線上詢問





產品特色

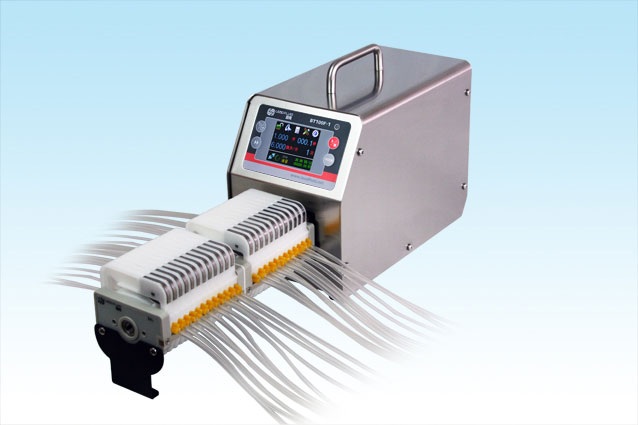

BT100F-1 Intelligent Dispensing Peristaltic Pump
1.Color touch screen, making the information more intuitive peristaltic pump and the operation more convenient;
2.Intelligent expert operating system can guarantee smooth operation even the operator never used such kind of machine before;
3.Motor rotation angle precision controlling technology, reducing the dispensing errors under traditional time control distribution pattern due to motor slow start;
4.The expert operating system can display the tube specifications, materials, pump head types and other information, guiding the operator set peristaltic pump correctly according to the input flow, fluid volume, working hours and other data.
5.Intelligent temperature control technology greatly reduces the operating noise of peristaltic pump;
6.It has three kinds of distribution patterns, time dispense mode, fluid volume dispense mode, copying dispense mode. It can meet different needs;
7.The function of accumulated distribution of liquid can record total liquid volume;
8.Infrared remote control function, it can be non-contact control;
9.Stainless steel housing easy to clean,excellent resistance to the corrosion of the acid ,alkali,sodium and the organic solvents.;
10.Calibrating flow function ,
11.RS485 interface, MODBUS communication protocol is available, easy to connect other equipments.
For pump head: YZ15(1,2，4), YZ25(1,2，4)，DG（12，16，24），KZ25（1，2）.
Flow range: 0.00016~1700(ml / min).

Technical parameters:
Speed range: 0.1 ~ 150 rpm
Speed resolution: 0.1 rpm, with accuracy 0.5%
Display: 65535 color LCD + touch screen
Supply Voltage: AC220V &AC110V, 50/60Hz
Power ratio: less than 50W
Working Environment Temperature: 0 ~ 40 centigrade .Relative humidity 80%
Protection level: IP31
Dimensions: (L*W*H) 278mm*150mm*237mm
Weight: 4.7kg.
External control functions:
External control start and stop, external control orientation, Isolated, TTL level input; 0-5V/10V, 4-20mA, 0-10KHz speed control input; Support RS485 bus, MODBUS communication protocol.
