• BT100S Basic Speed –Variable,Economic and Chemical Resistance Peristaltic Pump

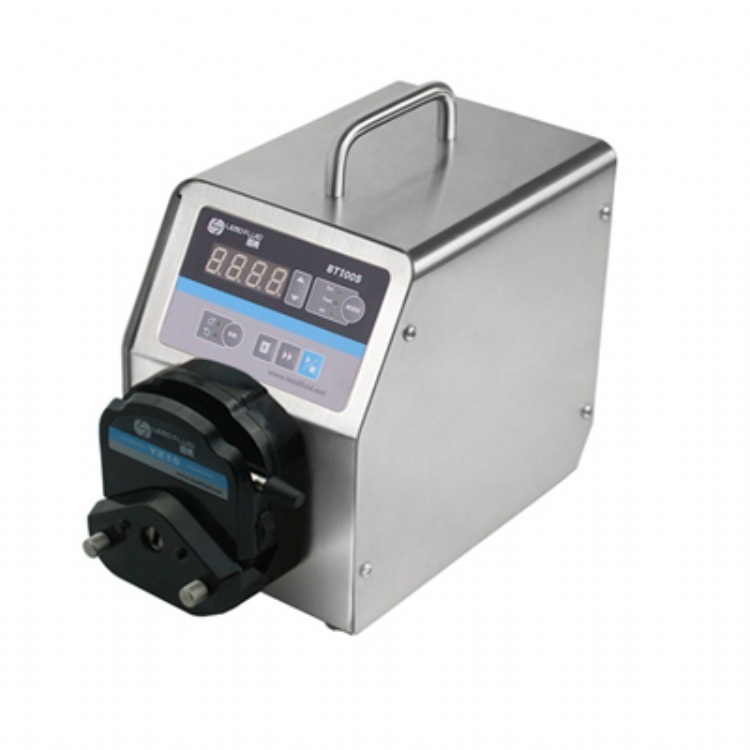

BT100S Basic Speed –Variable,Economic and Chemical Resistance Peristaltic Pump



產品型號：BT100S

產品分類：工具機產業機械 / 其他 / 其他



立即線上詢問





產品特色



1.Four-figure digital LED indicator display working speed ;
2.Intelligent expert operating system can guarantee smooth operation
3.Easy dispensing function ,it realizes the repeat timing quantitative dispensing .
4.Can drive multi-channels and various and various types of pump heads.
5.Stainless steel housing ,easy to clean ,excellent resistance to the corrosion of the acid,alkali,sodium and the organic solvents.
6.Internal double-desk isolation structure ,circuit board with conformal coating makes it dust-proof and moisture-proof.
7.External high-low electrical level controls the start/stop ,reversible direction and easy dispensing function ,optically coupled isolator, external analog adjusts the rotate speed .
8.RS485 interface ,MODBUS communication protocol is available ,easy to connect with other equipments.
9.Optional footswitch or timer for dispensing fluid .
For pump head: YZ15(1,2,4), YZ25(1,2, DG(1,,2,4,8,12)DG(1,2,4,8,12)
Flow range: 0.00016~720(ml / min).
Technical parameters:
Speed range: 0.1 ~ 150 rpm
Speed resolution:0.1-100rpm,the speed resolution is 0.1 rpm, 100-150 rpm ,the speed resolutions is 1rpm.with accuracy 0.5%
Supply Voltage: AC220V &AC110V, 50/60Hz
Power ratio: less than 40W
Working Environment Temperature: 0 ~ 40 centigrade. Relative humidity 80%
Protection level: IP31
Dimensions: (L *W * H) 223mm *150mm *195mm
Weight: 4.7 kg.
