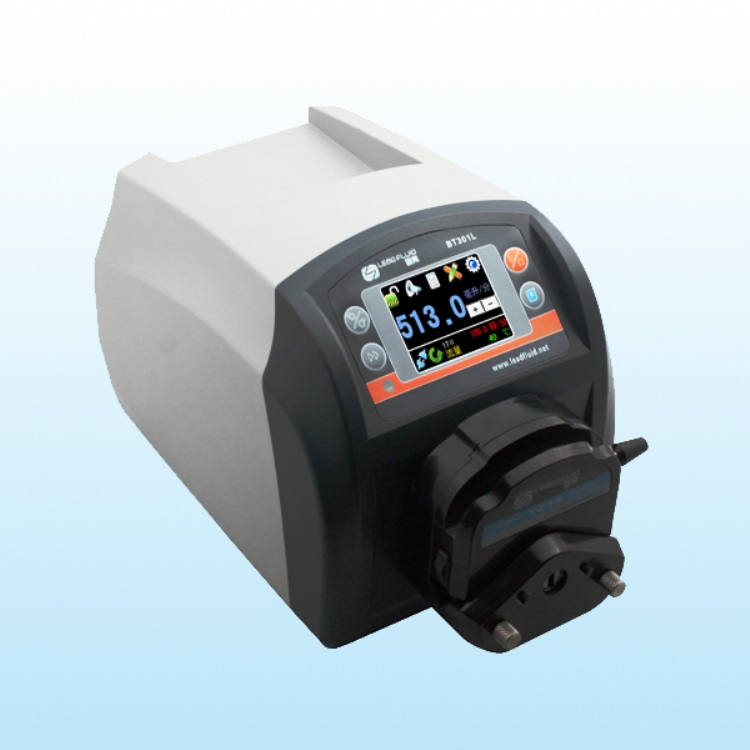

保定雷弗BT301L 智能型蠕动泵,专利
產品型號:雷弗BT301L
產品分類:自動化設備/產業機械 / 機械用自動控制電路設計及安裝 / 機械用自動控制電路設計及安裝
產品特色
1.Beautiful, economical and practical for laboratory environments;
2.Color touch screen, making the information more intuitive peristaltic pump and the operation more convenient;
3.Intelligence expert operating system can guarantee smooth operation even the operator never used such kind of machine before;
4.Unique dispensing function, simple operation, suitable for general accuracy of the liquid-dispensing, reduce the human operator error, improve work efficiency;
5.Calibrating flow function.
6.Intelligent temperature-control technology reduces working noise.
7.Reversible direction, start/stop and full speed ,state memory (power-down memory).
8.Speed resolution is above 0.1 rpm.
9.ABS plastic housing ,creative streamlined appearance .
10.Super anti-interference feature ,wide input voltage range, acceptable for the complex power environment.
11.Optional footswitch or timer for dispensing fluid.
12.RS485 interface ,MODBUS protocol is available ,easy to connect other equipments.
For pump head: YZ15,YZ25
Flow range: 0.006~1600(ml / min)
產品規格
Technical parameters
For pump head: YZ15,YZ25,YT15,YT25.Flow range: 0.006~1600(ml / min).Speed range: 0.1 ~ 350 rpm Speed resolution: 0.1 rpm, with accuracy 0.5% Display: 65535 color LCD + touch screen Supply Voltage: AC220V &AC110V, 50/60Hz Power ratio: less than 40W Working Environment Temperature: 0 ~ 40 centigrade. Relative humidity 80% Protection level: IP31 Dimensions: (L*W * H) 255mm*181mm*198mm Weight: 4.7 kg
External control functions: External control start and stop, external control orientation, Isolated, TTL level input; 0-5V/10V, 4-20mA, 0-10KHz speed control input; Support RS485 bus, MODBUS communication protocol.
Drive type |
Pump head |
Channel number |
Tubing(mm) |
One channel flow rate (ml/min) |
BT301L |
YZ15 |
1 |
13#14#16#19#25#17# |
0.006∼990 |
YZ25 |
1 |
15#24# |
0.16∼990 |
|
YT15 |
1 |
13#14#16#19#25#17#18# |
0.006∼1300 |
|
YT25 |
1 |
15#24#35#36# |
0.16∼1600 |
