Open Back Press with Pneumatic Friction Clutch
產品型號：JH21-160B
產品分類：工具機產業機械 / 金屬成型工具機 / 高速精密沖床
產品特色
Features:

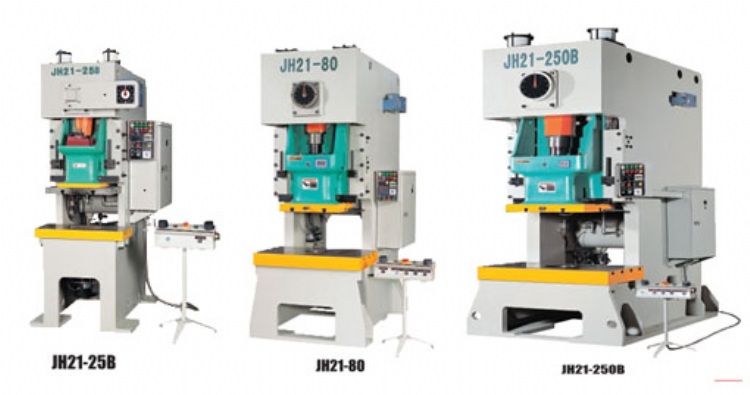

JH21 series open back press with dry clutch and hydraulic overload protector
■ Welded body with steel plate and high intensity;
■ Adopts combined pneumatic friction clutch and brake;
■ Cluster gear adopts the flooding oil lubrication;
■ Six-face rectangle lengthen guide;
■Equipped with hydraulic overload protecting device.
■ JF21-25/25B/45 adopts manual shut height adjustment, among these types JF21-25/45 adopts scale display and JF21-25B with digital display.；
■ JF21-63 and above type adopts electric shut height adjustment with digital display;
■ JF21-25B,JF21-45 and above type equipped with lifting balance cylinder;
■Duplex valves imported from Japan.
■ Electric compelling grease lubrication system.
■ Controlled by PLC with international brand;
■ Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand.
■ Equipped with optional air cushion device, automatic feed shaft and photoelectric protector, which can used to work with various automatic equipments.
產品規格
Nominal force kN 1600
Stroke under mm 6
nominal force
Slide block stroke mm 160
Number of stroke Fixed min-1 40
Variable 35-50
(Optional)
Max die set height mm 350
Die set height adjustment mm 110
Distance from slide block centre to the frame mm 380
Worktable dimensions（F・B×L・R） mm 740
1300
Dimensions of worktable hole mm φ300
50
φ260
Thickness of bolster mm 150
Hloe dimensions in bed (Diameter/ F・B×L・R) mm φ470
Dimensions of sideblock botton surface（F・B×L・R） mm 580
770
Size of the handle hole（Diameter×Depth） mm φ65
85
Distance between columns of body mm 850
Main motor capacity KW 15
Outline dimension（F・B×L・R×H） mm 2280
1550
3240
Net/Gross weight Kg 15500
17000
