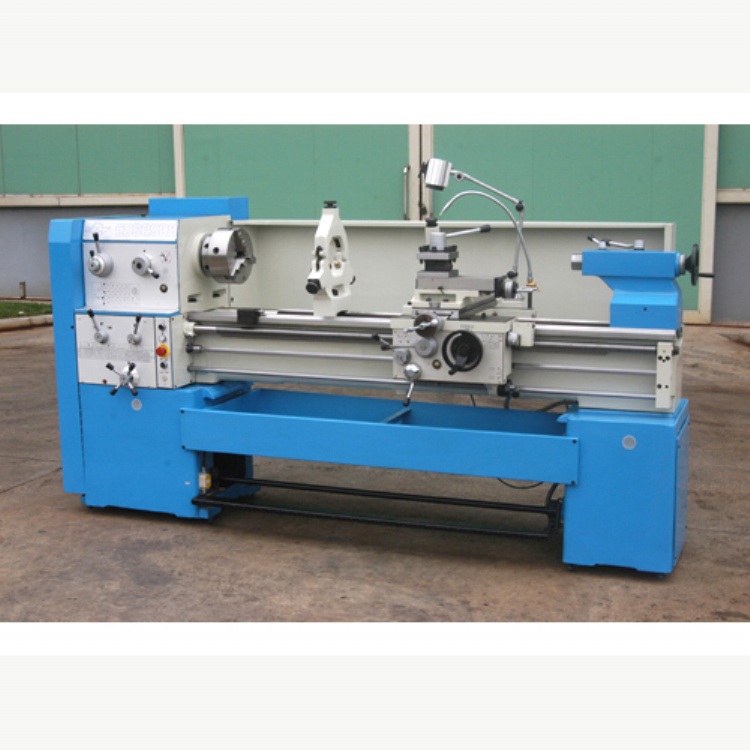

Engine Lathe
產品型號：CD6240Bx1500
產品特色
FEATURES:
-Large spindle bore of 65mm
-Main spindle dynamic balanced, and supported at 2 points with taper roller bearings of Harbin brand
-Outward appearance featuring large plains, making the machine more good-looking
-Gapped bedways, which are super-audio frequency hardened (HB 450 plus)
-All gears hardened and ground by Reishauer grinding machine
-Leadscrew and feedrod interlocked, both with overload protection
-Automatic feed stopper
-Configuration variable totally according to orders:
Metric or inch system; right or left hand wheel; large plane type; halogen lamp; quick change tool past; DRO; T-slot compound; chuck guard; leadscrew hood; rapid traverse motor; electromagnetic brake; forced lubrication system
產品規格
Max. swing over bed (mm)400
Max. swing over cross slide (mm) 225
Center distance (mm) 1500
Spindle hole65mm
