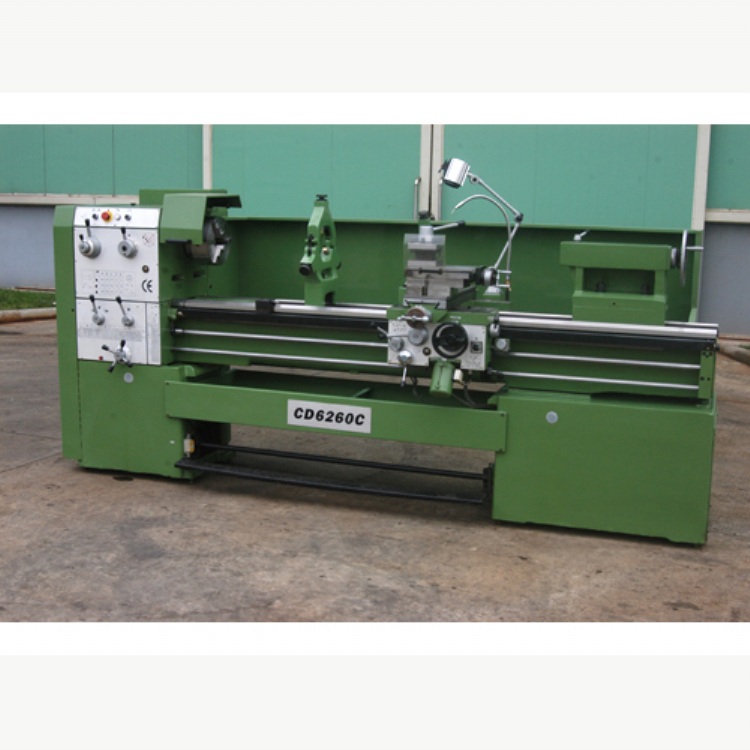

CDC Series Engine Lathe
產品型號：CD6240C-1500
產品特色
FEATURES:
-Oversized spindle bore of 80mm
-Main spindle dynamic balanced, and supported at 2 points with taper roller bearing of Harbin brand
-Outward appearance of machine features large plains, making the machine more good-looking
-Gapped bedways, which are super-audio frequency hardened (HB450 plus)
-All gears hardened and ground by Reishauer grinding machine
-Leadscrew and feedrod interlocked, both with overload protection
-Automatic feed stopper
-Configuration variable totally according to orders:
Metric or inch system; right or left hand wheel; halogen lamp; quick change; tool post; DRP; T-slot compound; chuck guard; leadscrew hood; rapid traverse motor; electromagnetic brake; forced lubrication system
產品規格
Max. swing over bed mm 400
Max. swing over cross slide mm 225
Center distance 1500mm
Spindle hole Ф80mm
