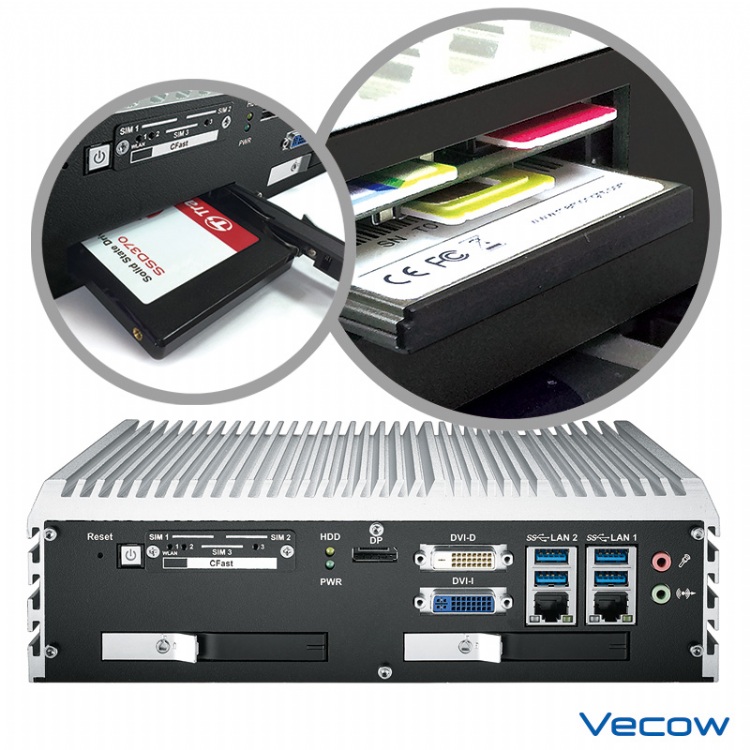

Quad Core Intel® Core™ i7/i5/i3 (Skylake-S) Fanless Embedded System(無風扇嵌入式系統)
產品型號：ECS 9000系列
產品分類：自動化設備/產業機械 / 自動化設備 / 自動化控制系統
產品特色
With Quad Core Intel® 6th Generation Core™ i7/i5/i3 processor (Skylake-S), fanless -40°C to 75°C operating temperature, all-in-one integrated features, multiple I/O connection, user-friendly, smart manageability, outstanding system performance & mobile availability, 6V to 36V power input with 80V surge protection, ignition power control, intelligent circuit protection and rugged reliability in harsh environments, Vecow ECS-9000 Series Fanless Embedded System is your excellent choices for Machine Vision, Intelligent Automation, Smart Manufacturing, Intelligent Surveillance, Vehicle Computing, Robot Control, and any Industry 4.0 performance-driven real-time embedded computing applications.
產品規格
| System | |
| Processor | Intel® Core™ i7-6700/ i7-6700TE/ i5-6500/ i5-6500TE/ i3-6100/ i3-6100TE Processor (Skylake-S) |
| Chipset | Intel® C236 |
| BIOS | AMI |
| SIO | IT8786E |
| Memory | 2 DDR4 2133MHz SO-DIMM, up to 32GB |
| I/O Interface | |
| Serial | 4 COM RS-232/ 422/ 485 |
| USB |
- 6 USB 3.0 (External) - 1 USB 2.0 (Internal) |
| Isolated DIO | 16 Isolated DIO : 8 DI, 8 DO |
| LED | Power, HDD, PoE |
| SIM Card | 3 SIM Card Socket (External) |
| Expansion | |
| Mini PCIe |
3 Mini PCIe Socket : - 2 Full-size Mini PCIe for PCIe/ USB/ External SIM Card/ mSATA - 1 Half-size Mini PCIe for PCIe/ USB 3.0/ External SIM Card |
| SUMIT A, B | 2 SUMIT Slot (Optional) |
| Graphics | |
| Graphics Processor | Intel® HD Graphics 530 |
| Interface |
- DVI-I : Up to 1920 x 1200 @ 60Hz - DVI-D : Up to 1920 x 1200 @ 60Hz - DisplayPort : Up to 4096 x 2304 @ 60Hz |
| Storage | |
| SATA | 2 SATA III (6Gbps) |
| mSATA | 2 SATA III (Mini PCIe Type, 6Gbps) |
| SATA DOM | 1 SATA II (3Gbps) |
| M2DOM | 1 PCIe 3.0 (8GT/s) |
| Storage Device |
- 1 CFast Socket, Push-in/ Push-out Ejector - 2 Front-access 2.5" SSD/ HDD Tray |
| Audio | |
| Audio Codec | Realtek ALC892, 5.1 Channel HD Audio |
| Audio Interface | 1 Mic-in, 1 Line-out |
| Ethernet | |
| LAN 1 | Intel® I219LM GigE LAN supports iAMT 11.0 |
| LAN 2 | Intel® I210 GigE LAN |
| PoE | |
| LAN 3 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 |
| LAN 4 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 |
| LAN 5 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 |
| LAN 6 | GigE IEEE 802.3at (25.5W/48V) PoE+ by Intel® I210 |
| Power | |
| Power Input | 6V to 36V, DC-in |
| Power Interface |
- 3-pin Terminal Block : V+, V-, Frame Ground - Mini-DIN 4-pin |
| Ignition Control | 16 Mode (Internal) |
| Remote Switch | 3-pin Terminal Block : On, Off, IGN |
| Surge Protection | Up to 80V/1ms Transient Power |
| Others | |
| TPM | Optional Infineon SLB9665 supports TPM 2.0, LPC Interface |
| Watchdog Timer | Reset : 1 to 255 sec./min. per step |
| Smart Management | Wake on LAN, PXE supported |
| HW Monitor | Monitoring temperature, voltages. Auto throttling control when CPU overheats |
| Software Support | |
| OS | Windows 10, Windows 8.1, Windows 7, Linux |
| Mechanical | |
| Dimension (W x L x H) | 260mm x 175mm x 79mm (10.2" x 6.9" x 3.1") |
| Weight | 3.8 kg (8.38 lb) |
| Mounting |
- Wallmount by mounting bracket - DIN Rail Mount |
| Environment | |
| Operating Temperature |
35W TDP CPU (i7-6700TE, i5-6500TE, i3-6100TE) : -40°C to 75°C (-40°F to 167°F) 65W TDP CPU (i7-6700, i5-6500, i3-6100) : -40°C to 55°C (-40°F to 131°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 5% to 95% Humidity, non-condensing |
| Relative Humidity | 95% at 70°C |
| Shock |
- IEC 60068-2-27 - SSD : 50G @ wallmount, Half-sine, 11ms |
| Vibration |
- IEC 60068-2-64 - SSD : 5Grms, 5Hz to 500Hz, 3 Axis |
| EMC | CE, FCC, EN50155, EN50121-3-2 |
