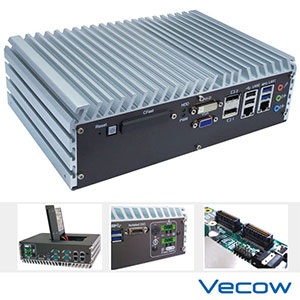

Fanless Embedded System with 6 GbE, Isolated DIO, SUMIT, and Intel QM77 Express Chipset

放大圖片

Fanless Embedded System with 6 GbE, Isolated DIO, SUMIT, and Intel QM77 Express Chipset

產品型號：ECS-7000-6GDE

產品分類：自動化設備/產業機械 / 自動化設備 / 自動化控制系統

立即線上詢問

產品特色

3rd Gen IntelR Core™ i7/i5/i3 Ivy Bridge Mobile Processor

Fanless, -25°C to 70°C Operation Temperature

6 GbE LANs for Extend Internet Application

QM77 System Chipset

Support SUMIT A, B and 2 SO-DIMM DDR3 or DDR3L, up to 16GB

Isolated 8 DI / 8 DO, GPIO 8 DI / 8 DO

Built-in Input 80 VDC Overvoltage Protection

Rich I/O: 4 COM, 4 USB 3.0, 2 USB2.0, 2 Mini-PCIe (1 with SIM Card Socket)

5 Display Support: 2 DP, DVI-D, VGA, LVDS, 3 Independent Displays

2 SATA III (6Gbps) 2.5” HDD / SSD, mSATA

IntelR AMT 8.0 Support

Onboard Trusted Platform Module (Optional)

產品規格

ECS-7000 series support 3rd Gen Intel® Quad-Core™ series processor (6M Cache, up to 3.30 GHz), DDR3L and DDR3 maximum dual channel 16GB ram, 3 independent display (DP, DVI-D, and VGA), isolated DIO, maximum 6 GbE LANs, CFast, two 2.5” SATA 6Gp/s HDD/SSD trays, 4 COM, 4 USB 3.0 ports, JST connector, and 2 miniPCI-express, plus with overvoltage protection and Trusted Platform Module which making ECS-7000 series stand out from others in machine vision and GigE imaging, intelligent automation, surveillance and security, and most of embedded applications. ECS-7000 full series powered by cutting-edge the 3rd Gen Intel® Quad-Core™i7 Processor (6M Cache, up to 3.3 GHz) not only increasing power efficiency as much as 25% also integrates Intel® HD 4000 graphics and extremely low thermal design power as 35W providing an enhanced reliability, safety and shock resistance for fanless operation required environments. Maximum 6 GbE LAN, ECS-7000 series provide stable and speedy Ethernet with 9.6 kb/s to 1 Gb/s data transmission option for high bandwidth and supports Ethernet Control Automation Technology (EtherCAT).

System
Processor	3rd Generation Intel® Quad Core™ i7/i5/i3 Ivy Bridge Processors (6M Cache, up to 3.30 GHz)
Chipset	Intel® QM77
BIOS	AMI
SIO	IT8783F
Memory	DDR3 1066/1333/1600 MHz, DDR3L 1066/1333 MHz Max. 16GB 2 204-pin SO-DIMM Sockets
I/O Ports
Serial Interface	3 COM RS-232, 1 COM RS-232 / 485 / 422
USB	4 USB 3.0, 2 USB 2.0, 2 Internal USB 2.0
Isolated DIO	8 DI, 8 DO (Optional)
LED	Power, SDD and CFast LEDs
GPIO	16 GPIO
Expansion
Mini PCIe	1 miniPCIe Socket: PCIe + USB + SIM Card Socket 1 miniPCIe Socket: PCIe + USB
SUMIT A, B	2 SUMIT Slots (Optional)
JST Connector	1 Internal 6-pin (Internal USB 2.0)
Graphics
Chipset	Intel® GMA HD 4000
Display Memory	Shared Memory, Up to 1.7GB
Interface	DB-15 VGA / 1920 x 1200 Max. DVI-D / 1920 x 1200 Max. Display Port 1 / 2560 x 1600 Max. Display Port 2 / 1920 x 1200 Max. LVDS / Dual Channel 24-bit / 1920 x 1200 Max.
Storage
SATA	2 SATA III 6Gbps 1 SATA II 3Gbps - Support Horizontal Type SATA DOM
mSATA	2 SATA II 3Gbps
Storage Expansion	CFast Slot Push In / Out Ejector
Audio
Audio Codec	Realtek ALC892, 5.1 Channel HD Audio
Audio Interface	Line-in, Line-out, Mic-in, Front Audio Header
Ethernet
LAN1	Intel® 82579LM Gigabit LAN, Wake on LAN, PXE Support
LAN2~6	Intel® 82574L Gigabit LAN, Wake on LAN, PXE Support
Power
Power Input	1 Mini DIN One 3-pin Terminal Block for DC-IN : V+, V-, Frame Ground
Power Input Voltage	DC-IN 6 ~ 36V
Power Adapter	AC to DC +24V / 5A 120W Max. (Optional)
Protection	On-board LT4356 for Power Input High Voltage Surge Protection
Other
Trusted Platform Module (TPM)	Infineon SLB9635, LPC interface (Optional)
Watchdog Timer	Reset: 1 to 255 sec / min Per Step
HW Monitor	Temperature / Voltages Auto Throttling Control When CPU Overheats
Mechanical
Chassis Construction	Aluminum Housing
Size (W x D x H)	260mm x 175mm x 79mm (10.2" x 6.9" x 3.1")
Weight	2.8 Kg (6 lb)
Mounting	Wall-mount by Mounting Bracket
Environment
Operating Temperature	-25°C to 70°C (-13°F to 157°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	10% to 95% Humidity, Non-condensing
Relative Humidity	95% at 70°C
Vibration	Random: 0.5Grms @5~500 Hz according to IEC68-2-64 Sinusoidal: 0.5Grms @5~500 Hz according to IEC68-2-64
Shock	Operating, 20 Grms, Half-sine 11 ms Duration (w / SSD, According to IEC60068-2-27)
EMC	CE / FCC Class A
