• Fanless Embedded System with 8 GbE and Intel QM67 Express Chipset



放大圖片

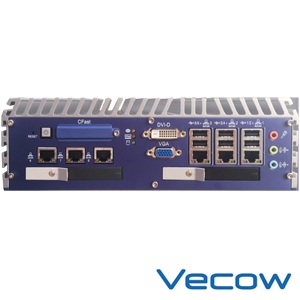

Fanless Embedded System with 8 GbE and Intel QM67 Express Chipset

產品型號：ECS-5600-8R

產品分類：自動化設備/產業機械 / 自動化設備 / 自動化控制系統

立即線上詢問

產品特色

2nd Gen IntelR Quad-Core™ i7/i5/i3 Sandy Bridge Mobile Processor

Fanless, -25°C to 70°C Operation Temperature

8 GbE LAN for Extend Internet Application

QM67 System Chipset

Rich I/O: 4 COM, 6 USB, 2 Mini-PCIe (1 with SIM Card Socket)

Support 2 SO-DIMM DDR3, up to 16GB

Dual Display: DVI-D / HDMI and VGA

2 Front Panel Accessible SATA III (6Gbps) 2.5” HDD / SSD with Key Lock

產品規格



ECS-5600-8Rof ECS-5600 family, not only enables 2nd Gen Intel® Quad-Core™ i7-2710QE Processor (6M Cache, up to 3.00 GHz) and maximum dual channel 16GB ram, DVI-D/HDMI and VGA dual display, CFast, two 2.5” SATA 6Gp/s HDD/SSD trays, 2 miniPCI-express with SIM card supports for WiFi, 3G/GPRS, and 2 eSATA ports, ECS-5600-8R extends to 8 GbE LANs and still keep outstanding thermal design for -25 degree to +70 degree Celsius industrial operating temperature range. Engineering designed for machine vision, intelligent automation, intelligent manufacture system, and process control applications, ECS-5600-8R provides powerful multi-core processor with iAMT, 16GB ram, 8 gigabit Ethernets, and rich I/O.





System Processor 2nd Generation Intel® Core™ i7/i5/i3 and Celeron™ Mobile, Sandy Bridge Processors Chipset Intel® QM67 BIOS Phoenix UEFI BIOS SIO Nuvoton NCT6106D Memory DDR3 1333 / 1066MHz  Max. 16GB 2 204-pin SO-DIMM Sockets I/O Ports Serial Interface 3 COM RS-232, 1 COM RS-232/485/422 USB Interface 6 USB Ports, Compliant with USB 2.0 LED Power/Suspend, HDD, and WDT LEDs GPIO 8 DI, 8 DO Expansion Mini PCIe 2 Mini PCIe, 1 SIM Socket on 1 Mini PCIe Interface SUMIT A, B 2 SUMIT Slots Graphics Chipset Intel® GMA HD 3000 Display Memory Shared Memory, Up to 1.7GB Interface VGA + DVI-D / HDMI Onboard VGA, Supports Max. Resolution 2048 x 1536 (@60Hz) Onboard DVI-D, Supports Max. Resolution 1920 x 1200 Storage SATA Front Panel 2 SATA III (6Gbps) 2.5" HDD/SSD Drive Bays SATA II (3Gbps) Slot, Supports IDE / AHCI Mode Storage Expansion CFast Slot, External Hot-Swap, Push In/Out Ejector eSATA 2 eSATA Ports Ethernet LAN1~LAN4 Intel® 82574L Gigabit LAN LAN5 Intel® 82579LM Gigabit LAN LAN6~LAN8 Intel® 82574L  Gigabit LAN Power Power Input DC Jack, 2-pin Terminal Block Power Input Voltage DC-IN 6 ~ 36V Power Adapter AC to DC +24V / 3.75A. 90W Max. (Optional) Other Watchdog Timer Reset: 1 to 255 sec./min. Per Step HW Monitor Temperature/Voltages Auto Throttling Control When CPU Overheats Mechanical Chassis Construction Aluminum Housing Size (W x D x H) 260mm x 175mm x 79mm (10.2" x 6.9" x 3.1") Weight 2.8 Kg (6 lb) Mounting Wall-mount by Mounting Bracket Environment Operating Temperature -25°C to 70°C (-13°F to 157°F) Storage Temperature -40°C to 85°C (-40°F to 185°F) Humidity 10% to 95% Humidity, Non-condensing Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, According to IEC60068-2-64) Shock Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, According to IEC60068-2-27) EMC CE/FCC Class A
