Fanless Embedded System with 4-Port GigE PoE+

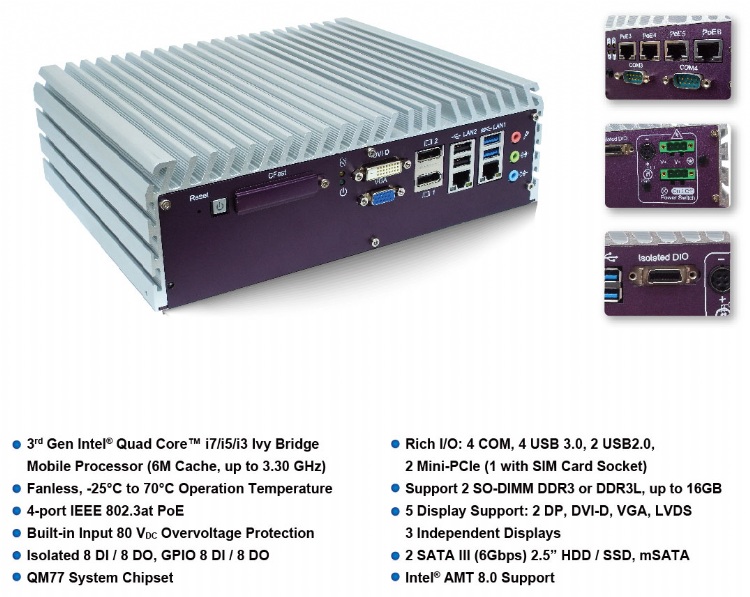

產品型號：ECS-7800-PoE
產品分類：自動化設備/產業機械 / 其他產業機械 / 精密機器及檢測設備
產品特色
3rd Gen IntelR Core™ i7/i5/i3 Ivy Bridge Mobile Processor
Fanless, -25°C to 70°C Operation Temperature
4-port IEEE 802.3at PoE+
Built-in Input 80 VDC Overvoltage Protection
Isolated 8 DI / 8 DO, GPIO 8 DI / 8 DO
Rich I/O: 4 COM, 4 USB 3.0, 2 USB2.0, 2 Mini-PCIe (1 with SIM Card Socket)
Support 2 SO-DIMM DDR3 or DDR3L, up to 16GB
5 Display Support: 2 DP, DVI-D, VGA, LVDS 3 Independent Displays
2 SATA III (6Gbps) 2.5” HDD / SSD, mSATA
IntelR AMT 8.0 Support
產品規格
ECS-7800-PoE supports 3rd Gen Intel® Quad-Core™ series processor (6M Cache, up to 3.30 GHz), DDR3L and DDR3 maximum dual channel 16GB ram, 4-port IEEE 802.3at PoE+, 5 display (2 DP, DVI-D, VGA, LVDS), isolated DIO, 2 GbE LANs, CFast, two 2.5” SATA 6Gp/s SSD/HDD trays, 4 COM, 4 USB 3.0 ports, JST connector, and 2 miniPCI-express, plus with overvoltage protection and Trusted Platform Module. Using only one Ethernet cable to supply power and transmit and sync data simultaneously, ECS-7800-PoE apply IEEE 802.3at power sourcing equipment enable to supply 50 to 57 VDC, 600 mA, and 25.5W at the powered device, for example, HD LCDs, touchscreens, cameras and motion sensors. Design for wider compatibility, higher power supply but less total cost and wiring, ECS-7800-PoE is one-of-a-kind dream fan-less embedded system for machine Vision, outdoor imaging, 3-D imaging, ITS (Intelligent Traffic Solutions), quality control, and medical imaging applications.
| System | |
| Processor |
3rd Generation Intel® Quad Core™ i7/i5/i3 |
|
Chipset |
Intel® QM77 |
| BIOS | AMI |
| SIO | IT8783F |
| Memory |
DDR3 1066/1333/1600 MHz, DDR3L 1066/1333 MHz |
| I/O Ports | |
| Serial Interface | 3 COM RS-232, 1 COM RS-232 / 485 / 422 |
| USB | 4 USB 3.0, 2 USB 2.0, 2 Internal USB 2.0 |
| Isolated DIO | 8 DI, 8 DO, 5V~24V Input |
| LED | Power, SDD and CFast LEDs |
| GPIO | 16 GPIO |
| Expansion | |
| Mini PCIe | 1 miniPCIe Socket: PCIe + USB + SIM Card Socket 1 miniPCIe Socket: PCIe + USB |
| SUMIT A, B | 2 SUMIT Slots (Optional) |
| JST Connector | 1 Internal 6-pin (Internal USB 2.0) |
| Graphics | |
| Chipset | Intel® GMA HD 4000 |
| Display Memory | Shared Memory, Up to 1.7GB |
| Interface |
DB-15 VGA / 1920 x 1200 Max. |
| Storage | |
| SATA | 2 SATA III 6Gbps 1 SATA II 3Gbps - Support Horizontal Type SATA DOM |
| mSATA | 2 SATA II 3Gbps |
| Storage Expansion | CFast Slot, External Hot-Swap, Push In / Out Ejector |
| Audio | |
| Audio Codec | Realtek ALC892, 5.1 Channel HD Audio |
| Audio Interface | Line-in, Line-out, Mic-in, Front Audio Header |
| Ethernet | |
| LAN1 | Intel® 82579LM Gigabit LAN, Wake on LAN, PXE Support |
| LAN2 | Intel® 82574L Gigabit LAN, Wake on LAN, PXE Support |
| Power-over-Ethernet | |
| 4 Gigabit IEEE 802.3at (25.5W / 48V) PoE Ports by Intel® 82574L | |
| Power | |
| Power Input | 1 Mini DIN One 3-pin Terminal Block for DC-IN : V+, V-, Frame Ground |
| Power Input Voltage | DC-IN 6 ~ 36V |
| Power Adapter | AC to DC +24V / 5A 120W Max. (Optional) |
| Protection | On-board LT4356 for Power Input High Voltage Surge Protection |
| Other | |
| Trusted Platform Module (TPM) | Infineon SLB9635, LPC interface (Optional) |
| Watchdog Timer | Reset: 1 to 255 sec / min Per Step |
| HW Monitor | Temperature / Voltages Auto Throttling Control When CPU Overheats |
| Mechanical | |
| Chassis Construction | Aluminum Housing |
| Size (W x D x H) | 260mm x 215mm x 79mm (10.2” x 8.5” x 3.1”) |
| Weight | 3 Kg (6.8 lb) |
| Mounting | Wall-mount by Mounting Bracket |
| Environment | |
| Operating Temperature | -25°C to 70°C (-13°F to 157°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 10% to 95% Humidity, Non-condensing |
| Relative Humidity | 95% at 70°C |
| Vibration | Random: 0.5Grms @5~500 Hz according to IEC68-2-64 Sinusoidal: 0.5Grms @5~500 Hz according to IEC68-2-64 |
| Shock | Operating, 20 Grms, Half-sine 11 ms Duration (w / SSD, According to IEC60068-2-27) |
| EMC | CE / FCC Class A |
