產品規格

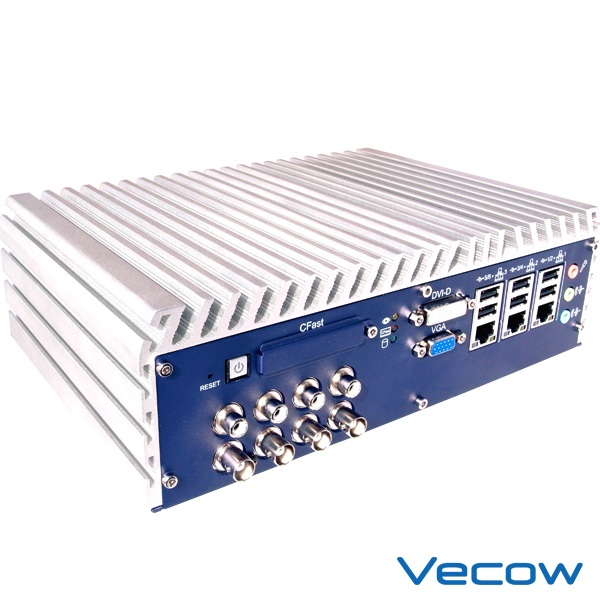

ECS-5600-3V,Extended Fanless Embedded System, with integrated 2nd Gen Intel® Quad Core™ i7, i5, i3, and Celeron® Sandy Bridge mobile series processor equipped with maximum 5 GbE LANs, DVI-D/HDMI and VGA dual display, CFast, dual channel maximum 16GB 1333/1066MHz DDR3 SO-DIMM slots, 2.5” SATA III (6Gbps) HDD/SSDs, SATA II (3Gbps), and 2 eSATA ports enable operating under -25ºC to +70ºC extended temperature. The new 2nd Gen Intel® Core™ processors offer embedded designers a number of important upgrades including multiple CPU cores, an integrated graphics processor, Intel® virtualization technology, Intel® Turbo Boost Technology, and remote management support. For vivid graphic enhancement, Intel® HD graphics engine supports H.264/AVC-MPEG2/VC1, DirectX 10.1 and OpenGL 3.0. Designed for harsh operational environments and high performance applications requiring expansion flexibility and data security, the ECS-5600-3V is suited for a broad range of embedded video applications, including security surveillance, mobile DVR, and intelligent transportation systems.
