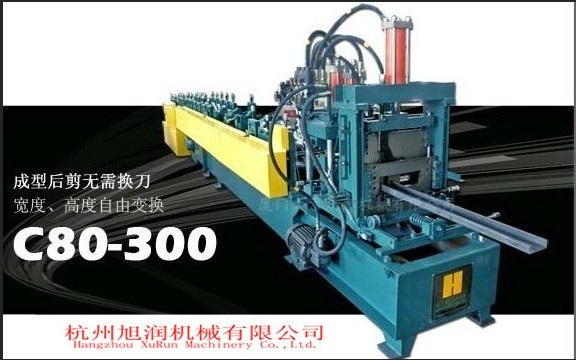

C Z Fast Change Purline Roll Forming Machine
產品型號：CZ Fast Change
產品分類：自動化設備/產業機械 / 自動化設備 / 自動組立機械
產品特色
Purlin is widely using in industry building. The line can forms C and Z shapes, just change the forming process within 15 minutes. And the machine capacity is much high than normal machine.
產品規格
Line Specification
Material: Thickness: 1.5-3.0mm, width as design
Decoiler: 3T/5T Decoiler
Forming Station: 16 stations up to the profile
Forming Speed: Max 25 m/min
Panel Run Out: Run Out Table/Auto Stacker
Total Power: About 30 KW up to final design
Total Installation Size: 25 X 3 m up to final design
