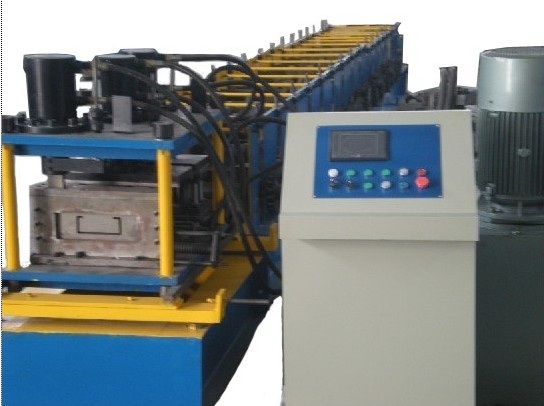

C Purlin Roll Forming Machine
產品型號：C
產品分類：自動化設備/產業機械 / 其他產業機械 / 建材機械
產品特色
C Purlin roll forming machine
Product Feature: The C-shaped purlin formed by purlin forming machine have excellent anti-bending property and are easy to install. They are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.
Machine's components: One Purline Forming Machine can produce many sizes of purline. Purlin forming machine mainly consists of uncoiler, coil sheet guiding device, flattening device, roll forming system, punching equipment, cutting equipment, hydraulic station, PLC controlling system and support table.
產品規格
|
1.Suitable Material |
Cold-rolled steel strip and heat-treated galvanized steel strip |
|
2. Thickness of raw material |
1.5_3.0mm |
|
3. Material of roller |
Cr12 mould steel being quenched treatment, with digital-controlled procession, which ensures the rollers' hardness to be HR60 and durable. |
|
4. Cutter blade |
Cr12 mould steel with quenched treatment |
|
5. Forming speed |
About 10-12m/min |
|
6.Power Requirement Main motor power |
15 Kw(Depend on final design) |
|
7. Uncoiler's loading Max. Capacity |
5000kgs |
|
8.Controlling system |
Mitsubishi PLC & converter |
|
9. Voltage |
380v 3 phase 50Hz or as per the customer's requirement |
|
10. Machine's size |
About 1800mm*2400mm*1400mm (Depend on final design) |
