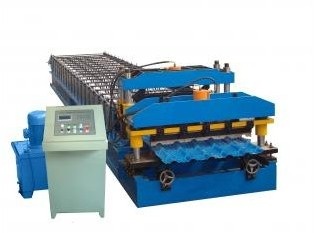

Glazed Tile Roll Forming Machine
產品型號：yx25-205-820
產品分類：自動化設備/產業機械 / 其他產業機械 / 建材機械
產品特色
Product Feature:
The colored steel tiles produced by this roll forming machine look beautiful, elegant and noble. They are widely used as the roof of garden, factory, hotel, exhibition center and villa, etc.
Machines components: Tile forming machine consists of uncoiler, coil sheet guiding device, main roll forming system, pressing device, cutting device, Hydraulic station, PLC control system and support table.
產品規格
|
1. Suitable material |
Color steel sheet |
|
2.Thickness of raw material |
0.4-0.8mm |
|
3.Yield strength of materia |
235Mpa |
|
4. Working speed |
About 1500-2000mm/min or 4-5m/min. For option |
|
5. Step distance |
Adjustable according to requirement (>=250mm) |
|
6. Power Requirement Main motor power |
4 Kw (Depend on final design) |
|
7. Hydraulic station power |
5.5Kw (Depend on final design) |
|
8. Controlling system |
Mitsubishi PLC & Converter |
|
9. Machines weight |
About 10T for different profile machine. |
|
10. Machines size |
About 10m× 1.7m× 1.4m (Depend on final design) |
