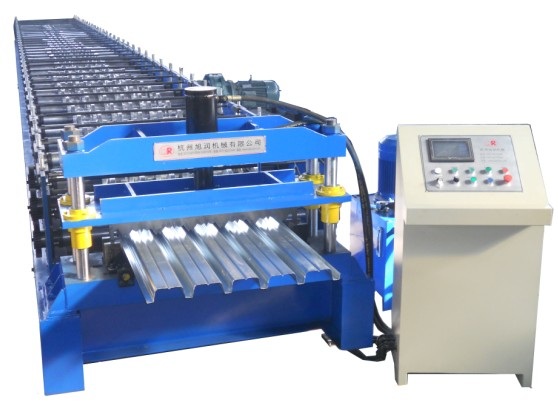

Decking Floor Roll Forming Machine
產品型號：1025
產品分類：自動化設備/產業機械 / 其他產業機械 / 建材機械
產品特色
Floor Decking Forming Machine
Product Feature: The metal deck produced by floor deck forming machine has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly.
Components of machine
Decking forming machine includes in decoiler, sheet guiding equipment, roll forming system, post-cutting equipment, hydraulic station, electric controlling system and run out table for product.
產品規格
|
1 Suitable material |
Color steel sheet or galvanized steel sheet |
|
2. Thickness of raw material |
0.8-1.2mm |
|
3. Forming speed |
About 12-15m/min |
|
4. Power Requirement |
18.5 Kw(Depend on final design) |
|
5. Uncoiler's loading capacity Max. Capacity |
5000kgs (can be increased to be 10T) |
|
6. Controlling system |
Mitsubishi PLC & converter |
|
7. Voltage |
380v 3 phase 50Hz or as per the customer''s requirement |
|
8. Diameter of shaft for rollers |
85mm |
