Roof Roll Forming Machine
產品型號：780
產品分類：自動化設備/產業機械 / 其他產業機械 / 建材機械
產品特色

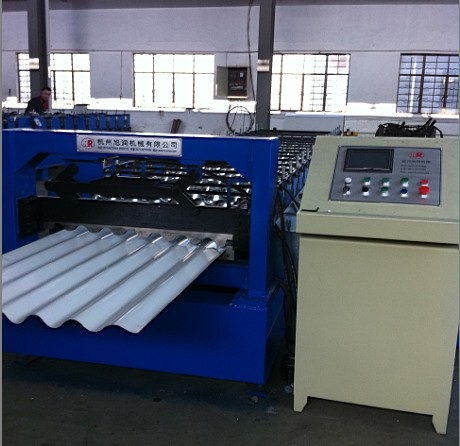

Wall & Roofing roll Forming Machine
Product Feature: The product from the roll forming machines looks beautiful and widely used as the wall of garden, factory, hotel, exhibition center, etc.
Components of machine
Wall roll forming machine includes in decoiler, sheet guiding equipment, roll forming system, post-cutting equipment, hydraulic station, electric controlling system and run out table for product.
產品規格
|
1. Suitable material |
Color steel sheet or galvanized steel sheet |
|
2. Thickness of raw material |
0.4-0.8mm |
|
3. Yield strength of material |
235Mpa-345Mpa |
|
4. Forming speed |
About 12-14m/min |
|
5. Power Requirement |
5.5Kw(Depend on final design) |
|
6. Hydraulic station power |
2.2Kw (Depend on final design) |
|
7. Uncoiler's loading capacity Max. Capacity |
5000kgs |
|
8. Controlling system |
Mitsubishi PLC & converter |
