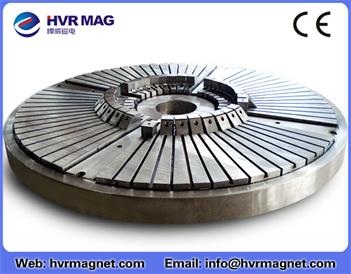

DYCC3 series electro permanent magnetic chuck for vertical lathe
產品型號：DYCC3
產品特色
DYCC3 series electro permanent magnetic chuck for vertical lathes with circular permanent magnet sucker，uses the unique variable cross-section magnetic pole structural design. The outer diameter increase suction strengthens gradually, Dual magnetic circuit design, T-slot design of the magnetic field superimposed, Easy pad plus magnetic blocks.
產品規格
|
Type&Data
|
Magnetic pole number
|
Total magnetic force(≤KN)
|
Overall dimension(mm)
|
Weight(kg)
|
||
|
D
|
d
|
H
|
||||
|
DYCC3-500
|
12
|
70
|
500
|
60
|
70
|
95
|
|
DYCC3-600
|
12
|
100
|
600
|
60
|
70
|
135
|
|
DYCC3-800
|
16
|
160
|
800
|
150
|
80
|
290
|
|
DYCC3-1000
|
16
|
200
|
1010
|
200
|
80
|
460
|
|
DYCC3-1300
|
24
|
360
|
1260
|
300
|
90
|
680
|
|
DYCC3-1500
|
24
|
480
|
1520
|
500
|
100
|
1240
|
|
DYCC3-1600
|
40
|
600
|
1620
|
800
|
125
|
1560
|
|
DYCC3-1800
|
40
|
800
|
1820
|
800
|
125
|
2050
|
