DYCX series Electro Permanent Magnetic Chucks for Milling

放大圖片

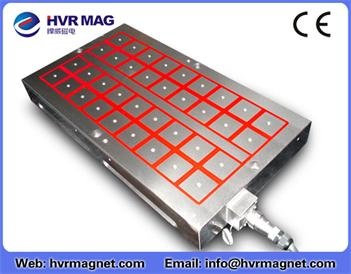

DYCX series Electro Permanent Magnetic Chucks for Milling

產品型號：DYCX

產品分類：工具機產業機械 / 銑床 / CNC銑床

立即線上詢問

產品特色

DYCX series electro permanentMagnetic chuck for milling
1.Standard type : Suitable for good quality surface work pieces.
2.Strong magnetic type : Suitable for bad quality surface work pieces.

產品規格

50X50 Magnetic poles series(magnetic force of single pole≥350kg)

Type&Data	Magnetic pole number	Total magnetic force(≤KN)	Overall dimension(mm)				Weight(kg)
Type&Data	Magnetic pole number	Total magnetic force(≤KN)	A	B	H(standard)	H(Strong magnetic)	M1(standard)	M2(Strong magnetic)
DYCX-2333P50	12	42	230	330	56	71	32	40
DYCX-2348P50	18	63	230	480	56	71	46	58
DYCX-2362P50	24	84	230	620	56	71	58	76
DYCX-2377P50	30	105	230	770	56	71	72	94
DYCX-2392P50	36	126	230	920	56	71	86	112
DYCX-2310P50	42	147	230	1070	56	71	100	130
DYCX-3033P50	16	56	300	330	56	71	40	50
DYCX-3048P50	24	84	300	480	56	71	60	75
DYCX-3062P50	32	112	300	620	56	71	80	100
DYCX-3077P50	40	140	300	770	56	71	100	125
DYCX-3092P50	48	168	300	920	56	71	120	150
DYCX-30107P50	56	196	300	1070	56	71	140	175
DYCX-4133P50	24	84	410	330	56	71	55	70
DYCX-4148P50	36	126	410	480	56	71	80	100
DYCX-4162P50	48	168	410	620	56	71	105	130
DYCX-4177P50	60	210	410	770	56	71	130	160
DYCX-4192P50	72	252	410	920	56	71	155	190
DYCX-41107P50	84	294	410	1070	56	71	180	220
DYCX-4933P50	28	98	490	330	56	71	65	85
DYCX-4948P50	42	147	490	480	56	71	95	120
DYCX-4962P50	56	196	490	620	56	71	125	155
DYCX-4977P50	70	245	490	770	56	71	155	190
DYCX-4992P50	84	294	490	920	56	71	185	225
DYCX-49107P50	98	343	490	1070	56	71	215	260
DYCX-6033P50	36	126	600	330	56	71	80	100
DYCX-6048P50	54	189	600	480	56	71	115	140
DYCX-6062P50	72	252	600	620	56	71	150	180
DYCX-6077P50	90	315	600	770	56	71	185	220
DYCX-6092P50	108	378	600	920	56	71	215	260
DYCX-60107P50	126	441	600	1070	56	71	240	300

70X70 Magnetic poles series(magnetic force of single pole≥685kg)

Type&Data	Magnetic pole number	Total magnetic force(≤KN)	Overall dimension(mm)				Weight(kg)
Type&Data	Magnetic pole number	Total magnetic force(≤KN)	A	B	H(standard)	H(Strong magnetic)	M1(standard )	M2(Strong magnetic)
DYCX-2242P70	8	54.8	220	420	56	71	45	55
DYCX-2261P70	12	82.2	220	610	56	71	60	75
DYCX-2281P70	16	109.6	220	810	56	71	75	95
DYCX-22100P70	20	137	220	1000	56	71	92	115
DYCX-3042P70	12	82.2	300	420	56	71	45	55
DYCX-3061P70	18	123.3	300	610	56	71	75	95
DYCX-3081P70	24	164.4	300	810	56	71	105	135
DYCX-30100P70	30	205.5	300	1000	56	71	135	175
DYCX-3922P70	8	54.8	390	220	56	71	30	40
DYCX-3942P70	16	109.6	390	4200	56	71	65	85
DYCX-3961P70	24	164.4	390	610	56	71	100	130
DYCX-3981P70	32	219.2	390	810	56	71	135	175
DYCX-39100P70	40	274	390	1000	56	71	170	220
DYCX-4822P70	10	68.5	480	220	56	71	40	50
DYCX-4842P70	20	137	480	420	56	71	80	100
DYCX-4861P70	30	205.5	480	610	56	71	120	150
DYCX-4881P70	40	274	480	810	56	71	160	210
DYCX-48100P70	50	342.5	480	1000	56	71	200	160
DYCX-5822P70	12	82.2	580	220	56	71	50	65
