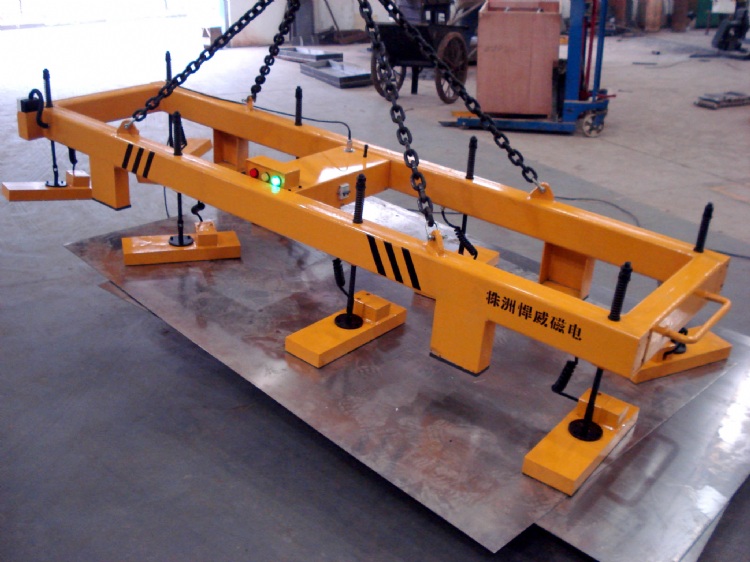

Eelectro Permanent Lifting Magnet for Lifting steel plate
產品型號：HEPMP-B
產品分類：自動化設備/產業機械 / 其他產業機械 / 運搬機械
產品特色
The series Electro Permanent lifting magnets are used for lifting single piece of thin steel plate of below 6 mm thickness, These magnets can generate 12 kg/cm2 lifting force. Furthermore, it will not lift the second piece steel plate.
產品規格
|
Model
|
Rated lifting capacity(kg)
|
Max.pull-off strength(kg)
|
Overall dimension(mm)
|
weight(kg)
|
|||||
|
A
|
B
|
H
|
D
|
n
|
M
|
||||
|
HEPMP-100B
|
100
|
600
|
350
|
106
|
49
|
45
|
3
|
6
|
15
|
|
HEPMP-200B
|
200
|
1200
|
350
|
162
|
49
|
45
|
3
|
6
|
22
|
|
HEPMP-300B
|
300
|
1850
|
500
|
162
|
49
|
45
|
3
|
6
|
30
|
|
HEPMP-500B
|
500
|
2800
|
500
|
218
|
49
|
60
|
3
|
10
|
40
|
|
HEPMP-600B
|
600
|
3700
|
650
|
218
|
49
|
60
|
3
|
10
|
50
|
|
HEPMP-800B
|
800
|
4650
|
500
|
330
|
49
|
80
|
4
|
12
|
60
|
|
HEPMP-1000B
|
1000
|
5600
|
650
|
302
|
49
|
80
|
4
|
12
|
75
|
|
HEPMP-1500B
|
1500
|
8400
|
950
|
302
|
49
|
100
|
4
|
16
|
105
|
|
HEPMP-2000B
|
2000
|
11200
|
950
|
386
|
49
|
100
|
4
|
16
|
145
|
Note 1. The definition of rated lifting capacity for series EP magnets: Rated lifting capacity=The max.pull-off strength at 1.0mm working air-gap/1.5.
