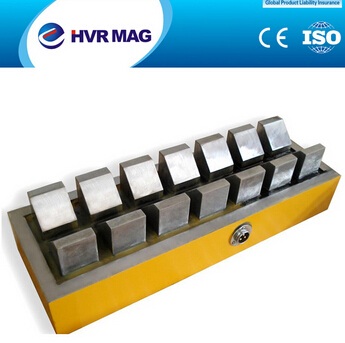

HEPMSP series steel pipe electro permanent lifting magnet
產品型號：HEOMSP
產品分類：自動化設備/產業機械 / 鋼管製造機 / 不鏽鋼管製造機
產品特色
HEPMSP series steel pipe electro permanent lifting magnets have light weight and strong load capacity. Unique EPM technique using double magnet systems. Electro permanent lifting magnet needs electricity only during switching magnet ON and OFF. Over 95% saving of electricity as compared to conventional lifting electromagnet. No battery back up is needed. And can be controlled by a single operator staying at a safe distance.
產品規格
|
Model
|
Rated lifting capacity(KN)
|
Overall dimension(mm)
|
Weight(kg)
|
|||||||
|
A
|
B
|
C
|
D
|
E
|
G
|
H
|
L(Based on round steel)
|
|||
|
HEPMSP-100
|
100
|
135
|
160
|
16
|
50～200
|
60
|
50
|
150
|
0.4m(D=200);4m(D=50)
|
9.5
|
|
HEPMSP-300
|
300
|
305
|
160
|
16
|
50～200
|
60
|
50
|
165
|
1.2m(D=200);5m(D=50)
|
23
|
|
HEPMSP-600
|
600
|
560
|
190
|
22
|
60～300
|
70
|
50
|
180
|
1.0m(D=300);6m(D=60)
|
48
|
|
HEPMSP-1000
|
1000
|
680
|
230
|
25
|
100～500
|
90
|
70
|
206
|
0.7m(D=500);6m(D=100)
|
72
|
