HEPMB series steel billets lifting magnet

放大圖片

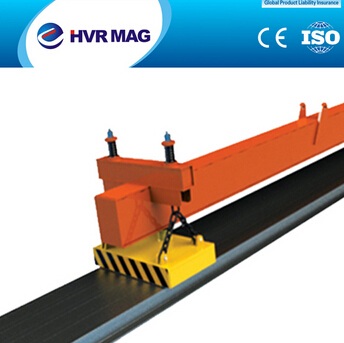

HEPMB series steel billets lifting magnet

產品型號：HEPMB

產品分類：自動化設備/產業機械 / 其他產業機械 / 工業儀器設備

立即線上詢問

產品特色

HEPMB series steel billets electro permanent lifting magnets are adopted by rectangle magnetic poles and working air-gap, and widely used in single or joint lifting steel billets, heavy rail in rows materials.
HEPMB series lifting magnet for lifting steel billets
1. for bundled round steel lifting
2. safe, efficiency and energy saving
3. CE
4. OEM available

產品規格

Typel&Data	Rated lifting capacity(kg)	Overall dimension(mm)					Weight(kg)	Lifting samples
		A	B	C	D	H
HEPMB-7530	1300	710	350	250	400	655	472	steel billets	100	120	130	150	200
								Max number of roots	6	5	4	4	3
								The length of a single load(m)	2.78	2.31	2.14	1.85	1.4
HEPMB- 10040	2300	1000	400	270	600	675	745	steel billets	100	120	130	150	200
								Max number of roots	9	7	7	6	4
								The length of a single load(m)	2.78	2.78	2.57	2.22	1.67
HEPMB-7070	2600	700	700	250	400	655	945	steel billets	100	120	130	150	200
								Max number of roots	6	5	4	4	3
								The length of a single load(m)	5.56	4.63	4.3	3.7	2.78
HEPMB-10080	4500	1000	800	280	600	690	1500	steel billets	100	120	130	150	200
								Max number of roots	9	7	7	6	4
								The length of a single load(m)	5.56	5.56	5.14	4.45	3.34
HEPMB-12080	5700	1200	800	250	800	690	1800	steel billets	100	120	130	150	200
								Max number of roots	11	9	8	7	5
								The length of a single load(m)	5.56	5.56	5.14	4.45	3.34
HEPMB-14080	6800	1400	800	280	800	690	2100	steel billets	100	120	130	150	200
								Max number of roots	13	10	10	8	6
								The length of a single load(m)	5.56	5.56	5.14	4.45	3.34
HEPMB-16095	9800	1600	950	280	1000	720	2730	steel billets	100	120	130	150	200
								Max number of roots	15	12	11	10	7
								The length of a single load(m)	5.56	5.56	5.56	5.56	4.17
