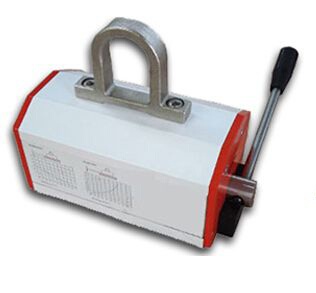

HLM1 Series Permanent Lifting Magnets
產品型號：HLM1
產品分類：自動化設備/產業機械 / 其他產業機械 / 工業儀器設備
產品特色
HLM1 Series permanent lifting magnet has strong magnetic path produced by NdFeB magnet. The on and off of the magnetic path is controlled by turning the manual handle. The lifters have the features of strong attraction, smaller volume , light-weighted ,powerful lifting effort ,easy and safe to operate ,long-period effort and without power supply. They are being used to lift and transport the steel and iron for factories,docks, ware houses ,transportation etc.
Features:
1．Farther magnetic permeability depth and stronger magnetic field
2．The body is consist of metal material.
3．Simple operation, small volume, light weight, holding power.
產品規格
| Model | Max.Pull-off strength(kgf) |
Rated Lifting Capacity (kgf) |
Overall dimension(mm) | Weight(kg) | |||||||
| for steel plate | for round steel | B | B1 | L | H1 | H2 | F | G | |||
| HLM1-100 | 350 | 100 | 50 | 65 | 188 | 132 | 66 | 80 | 60 | 50 | 3.5 |
| HLM1-250 | 875 | 250 | 125 | 96 | 214 | 191 | 86 | 80 | 60 | 50 | 10 |
| HLM1-500 | 1750 | 500 | 250 | 124 | 302 | 256 | 117 | 94 | 70 | 50 | 24 |
| HLM1-1000 | 3500 | 1000 | 450 | 160 | 417 | 312 | 151 | 120 | 90 | 70 | 49 |
| HLM1-1500 | 5250 | 1500 | 670 | 160 | 417 | 415 | 151 | 134 | 100 | 80 | 75 |
| HLM1-2000 | 7000 | 2000 | 850 | 178 | 503 | 509 | 150 | 134 | 100 | 80 | 90 |
| HLM1-3000 | 10500 | 3000 | 1200 | 235 | 590 | 550 | 203 | 134 | 100 | 80 | 180 |
