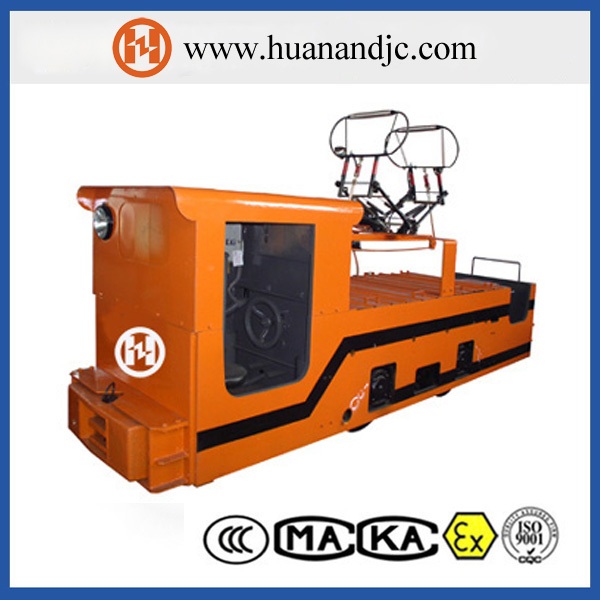

CJY7/6G trolley mining electric locomotive
產品型號：CJY7/6G
產品分類：自動化設備/產業機械 / 其他產業機械 / 運輸設備
產品特色
Power supply DC 250V and DC 550V,double-motor traction,one-stage gear drive.
Controller includes resistance cam step speed regulation and ZBT chopped wave stepless intelligent speed regulation.
Large traction force,stable operation,powerful and reliable braking.
產品規格
Adhesive Weight(t):7
Track Gauge(mm):600,762,900
Traction(kN):13.05,15.09
Max.Traction(kN):17.2
Speed(km/h):11
Voltage(V):250, 550
Power(kW):21×2, 24×2
Length(mm):4550
Width(mm):1050,1212,1350
Height(mm):1600
Wheelbase(mm):1100
Wheel Diameter(mm):680
Min.Turning Radius(m):7
Controller:Resistance,IGBT,Frequency conversion
Brake:Mechanical or Electric
