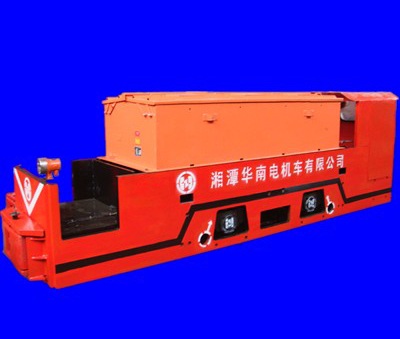

CTY18/9G(B/P) large underground mining explosion-proof battery electric locomotive
產品型號:CTY18/9G(B/P)
產品分類:自動化設備/產業機械 / 其他產業機械 / 運輸設備
產品特色
18T electric locomotive is specially developed for large tunnel,metro,water diversion projects.
Include IGBT speed regulation and frequency conversion speed regulation,with characteristic of fast and smooth starting,small impact,low energy consumption and good adhesive.
With three braking method:mechanical braking,resistance braking and air braking,adopt centralized control console,with good appearance and easy operation.
With V-shape rubber spring,be capable of bearing vibration and impact in longitudinal,vertical and horizontal directions,better protect the driver and electric equipment.
Large traction force,strong carrying capacity,it is the ideal traction engine for tunnel construction.
產品規格
Adhesive Weight(t):18
Track Gauge(mm):762,900
Traction(kN):29.4
Max.Traction(kN):44.15
Speed(km/h):9.8
Voltage(V):208
Capacity(An):730
Power(kW):40×2
Length(mm):5100
Width(mm):1500
Height(mm):1900
Wheelbase(mm):2100
Wheel Diameter(mm):600
Min.Turning Radius(m):20
Controller:Resistance,IGBT or Frequency conversion
Brake:Mechanical,Electric or Air
