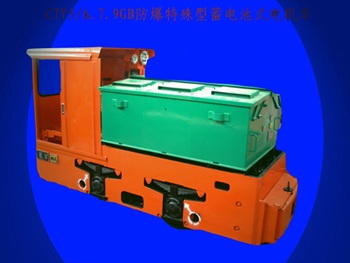

CTY5/6G narrow gauge locomotive
產品型號:CTY5/6G
產品分類:自動化設備/產業機械 / 其他產業機械 / 運輸設備
產品特色
Include step resistance cam speed regulation and stepless ZBT intelligent chopped wave speed regulation.
Double-motor traction,two-stage gear drive,reasonable structure,flexible operation,reliable explosion-proof performance.
Motors and electrical equipments are in explosion insulated version,power supply is in special explosion-proof version.power supply device will not be accumulated with hydrogen and not be generated with spark .
Used for mine traction and transportation,where there is methane contained and coal dust explosive danger existing.
產品規格
Adhesive Weight(t):5
Track Gauge(mm):600,762,900
Traction(kN):7.06
Max.Traction(kN):12.26
Speed(km/h):7
Voltage(V):88,90,96
Capacity(An):330,385
Power(kW):7.5×2
Length(mm):3000,3020,3170
Width(mm):1062,1082,1220
Height(mm):1550
Wheelbase(mm):850
Wheel Diameter(mm):520
Min.Turning Radius(m):6
Controller:Resistance Chopped wave or IGBT
Brake:Mechanical
