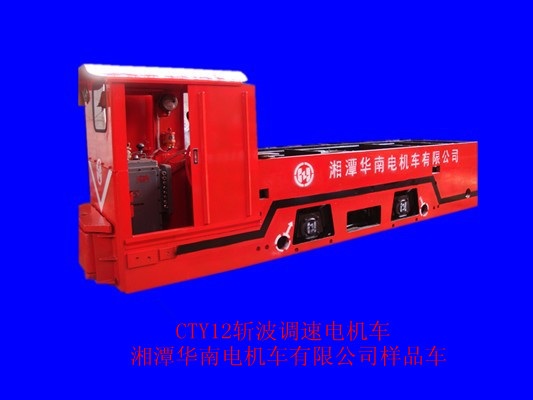

CTY(L)12/6G underground mining battery powered electric locomotive
產品型號:CTY(L)12/6G
產品分類:自動化設備/產業機械 / 其他產業機械 / 運輸設備
產品特色
Include standard,downhole special explosion-proof and ground engineering vehicle versions.
Include chopped wave speed regulation,battery series-parallel resistance speed regulation and frequency conversion speed regulation.
Featuring large traction force,high speed and strong carrying capacity.
Double end cabs are optional,good outlook performance.
Used for high methane downhole coal mine whose annual yield is up to over 120,000,0 tons.
產品規格
Adhesive Weight(t):12
Track Gauge(mm):600,762,900
Traction(kN):16.48 18.93
Max.Traction(kN):29.43
Speed(km/h):8.7 9.6
Voltage(V):192 256
Capacity(An):560
Power(kW):22×2 30×2
Length(mm):5100,5250
Width(mm):1050,1212,1350,1450
Height(mm):1600 1900
Wheelbase(mm):1200 1750
Wheel Diameter(mm):680
Min.Turning Radius(m):10 15
Controller:Resistance,IGBT or Frequency conversion
Brake:Mechanical,Electric or Air
