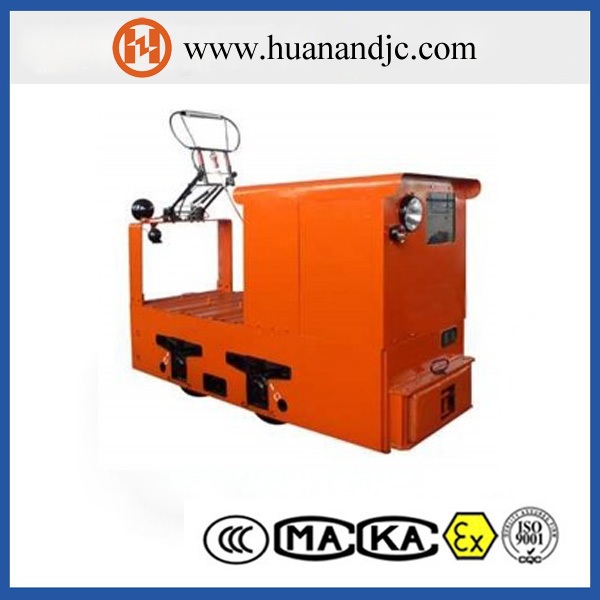

3ton underground mining trolley electric locomotive
產品型號:CJY3/6G, 7G, 9G
產品分類:自動化設備/產業機械 / 其他產業機械 / 運輸設備
產品特色
Suitable for 250V DC Power supply rail transportation.
Include single-motor and double-motor traction version.single-motor traction version is one gear driven,and double-motor traction version is two-stage gear driven.
Large traction force,fast speed,stable and flexible operation,simple structure and easy maintenance.
產品規格
Adhesive Weight(t):3
Track Gauge(mm):600,762,900
Traction(kN):4.7 5.74
Max.Traction(kN):7.36
Speed(km/h):7, 7.5
Voltage(V):250,550
Power(kW):12.2×1, 6.5×2
Length(mm):2700, 2750,3255
Width(mm):944,1106,1244
Height(mm):1550
Wheelbase(mm):816,850
Wheel Diameter(mm):650, 520
Min. Turning Radius(m):6
Controller:Resistance,Chopped wave
Brake:Mechanical or Air
