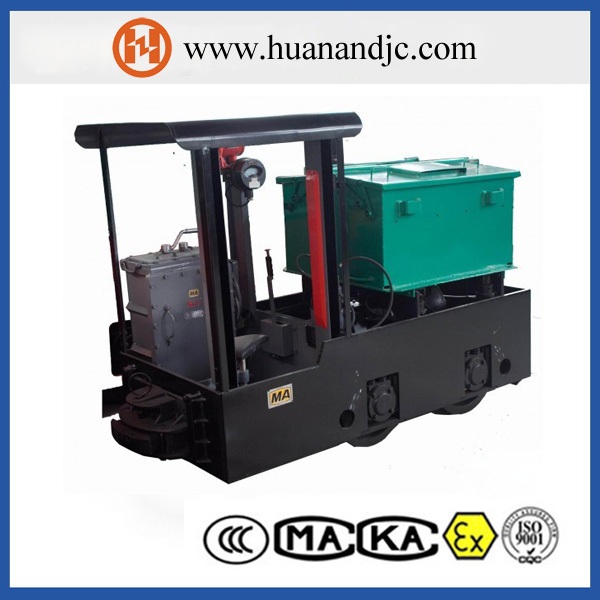

CTY2.5/6G narrow gauge mining battery electric locomotive
產品型號:CTY2.5/6G
產品分類:自動化設備/產業機械 / 自動化設備 / 自動化機械,氣壓式
產品特色
Includes chopped wave intelligent speed regulation and resistance speed regulation based on speed regulation mode.
Includes safety and special explosion-proof version based on their appliable site.
Small size,short wheelbase,flexible,smooth and reliable mechanical braking.
Simple structure and easy maintenance.
Used for roadway,small-scale mine transportation and medium-size mine vehicle.
產品規格
Adhesive Weight(t):2.5
Track Gauge(mm):600,762,900
Traction(kN):2.55
Max. Traction(kN):6.13
Speed(km/h):4.54
Voltage(V):48
Capacity(An):308 330
Power(kW):3.5×1
Length(mm):2330
Width(mm):914,1076,1212
Height(mm):1550
Wheelbase(mm):650
Wheel Diameter(mm):460
Min. Turning Radius(m):5
Controller:Resistance or Chopped wave
Brake:Mechanical
