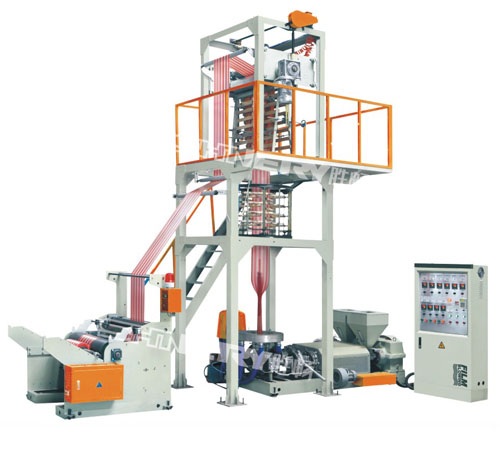

Tow-Color Striped Film Blowing Machine (SCN/45x2CD)
產品型號：SCN/45x2CD
產品特色
Tow-Color Striped Film Blowing Machine (SCN/45x2CD)
產品規格
|
MODEL |
SCN/45 x 2CD |
|
SCREW DIAMETE |
45 x 2 |
|
SCREW L/D LENGTH |
30: 1 |
|
SCREW MATERIAL |
SACM-645/38 CRMOALA |
|
FILM WIDTH |
300-550mm |
|
FILM THICKNESS |
0.006-0.05mm |
|
DIE HEAD |
70 |
|
MAIN MOTOR |
15kw |
|
OUTPUT |
30-50kg/hr |
|
AIR BLOWER |
1.5kw |
|
TAKE-UP SPEED |
10-100m/min |
|
TAKE-UP MOTOR |
0.75kw |
|
WINDING MOTOR |
10-100m/min |
|
WINDING SPEED |
8N. M |
|
OVERALL DIMENSION (L x W x H) |
4000 x 2000 x 4500mm |
