Film Blowing Machine (HDPE) X2
產品型號：SCN/H
產品特色

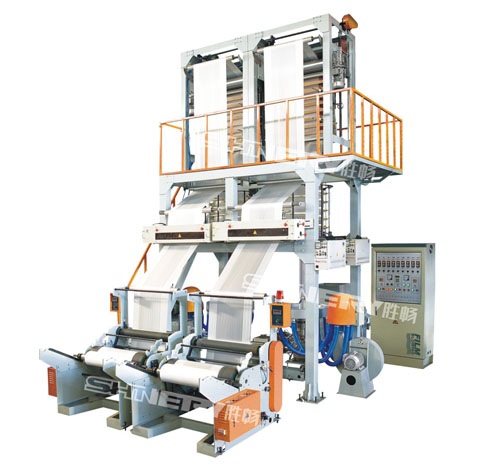

SCN/H HDPE FILM BLOWING MACHINE
This machine set is used for blowing Low-density polyethylene (LDPE) and high- density polyethyene (HDPE) plastic film to make various vest bags and flat-rim bags which have been widely used for packing in the food industry, garment industry and textile industry, etc.
Characteristics:
Both the cylinder and the screw of the extruder are made of high quality alloy steel through nitration and precision finishing with the best hardness and corrosion resistance., Scientifically designed, this machine set has two heads for one extruder with such advantages as increasing production capacity, saving energy, labour and workshop area, etc.
產品規格
|
MODEL |
SCN/H-45C-2Y |
SCN/H-55C-2Y |
SCN/H-65C-2Y |
|
SUITABLE MATERIAL |
HDPE |
||
|
FILM WIDTH |
150-500mm |
150-600mm |
300-800mm |
|
FILM THICKNESS |
0.008-0.03mm |
0.008-0.03mm |
0.008-0.05mm |
|
EXTRUSION OUTPUT |
25-45kg/hr |
30-70kg/hr |
50-100kg/hr |
|
EXTRUDER |
|||
|
SCREW I/D LENGTH |
30: 1 |
||
|
SCREW MATERIAL |
SACM-645/38 CRMOALA |
||
|
CYLINDER MATERIAL |
SACM-645/38 CRMOALA |
||
|
CYLINDER COOLING |
370KW× 2 |
550KW× 3 |
550KW× 4 |
|
DRIVING MOTOR |
15Kw |
22Kw |
37kw |
|
TEMPERATURE CONTROL |
3 |
3 |
3 |
|
AVERAGE POWER-CONSUME |
18KW |
30KW |
40KW |
|
TYPE OF DIE |
|||
|
DIE SIZE |
φ 40/60× 2 |
φ 60/80× 2 |
φ 80/100× 2 |
|
AIR BLOWER |
1.5KW× 2 |
1.5KW× 2 |
2.2KW× 2 |
|
TEMPERATURE CONTROL |
2 |
||
|
AIR RING |
2 |
||
|
CENTER STEADY STICK |
2 |
||
|
TAKE-UP UNIT |
|||
|
ROLLER WIDTH |
φ 165× 550mm |
φ 165× 650mm |
φ 165× 850mm |
|
EFFECTIVE WIDTH |
400mm |
500mm |
600mm |
|
HEIGHT ADJUSTABLE TYPE |
700mm |
700mm |
700mm |
|
TAKE-UP SPEED |
10-100m/min |
10-100m/min |
10-100m/min |
|
TAKE-UP MOTOR |
0.75KW |
0.75KW |
1.5KW |
|
WINDING UNIT |
|||
|
TYPE |
SURFACE FRICTION TYPE |
||
|
WINDING MOTOR |
6N. M |
8N. M |
10N. M |
|
WINDING SPEED |
9-110m/min |
9-110m/min |
10-110m/min |
|
OVERALL DIMENSION |
5.0× 3.5× 4.5m |
5.0× 3.9× 4.5m |
6.5× 3.9× 5.0m |
