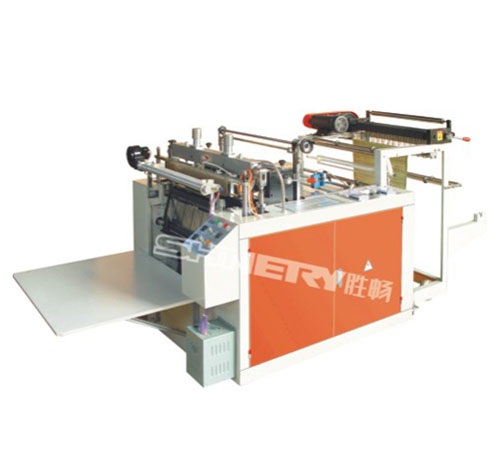

T-Shirt Bag Making Machine (SCN-500)
產品型號：SCN-500
產品特色
SCN-500 Computer Heat-sealing & Heat-cutting T-shirt Bag Making Machine
Use:
It is suitable for hot sealing and cutting both tnherent color and color plastic film, which made of HDPE, LDPE etc. It's a most perfect equipment for producing T-shirt bag.
Characteristic:
1. Sealing & cutting blade are in reasonable structure, convenient clean/exchange rubberized fabric.
2. It adopts imported photoelectrical cell to track printing with function; If lose sign, the machine stops automatically.
3. It adopts micro computer to control, servo motor to pull material; And producing piece number can be set up freely, no-stop than feeding out material automatically.
4. It adopts photocell to track. If material is blocked or out of material, machine will stops automatically.
產品規格
Main Technical Parameters:
Model: SCN-500
Producing Length: < 800mm
Producing Width: < 400mm
Thickness of Film: 0.01-0.05mm
Producing Speed: 30-140 (PCS/min)
Main Power: 3.5kw
Power Source: 220V 50Hz
Weight: 750kg
Overall Dimensions (L*W*H): 2900*1150*1250mm
Packing Dimensions(L*W*H): 2200*1250*1600mm
Model: SCN-700
Producing Length: < 1000mm
Producing Width: < 600mm
Thickness of Film: 0.01-0.05mm
Producing Speed: 30-120 (PCS/min)
Main Power: 4.5KS
Power Source: 220V 50Hz
Weight: 800kg
Overall Dimensions(L*W*H): 2900*1250*1250mm
Packing Dimensions(L*W*H): 2200*1350*1600mm
