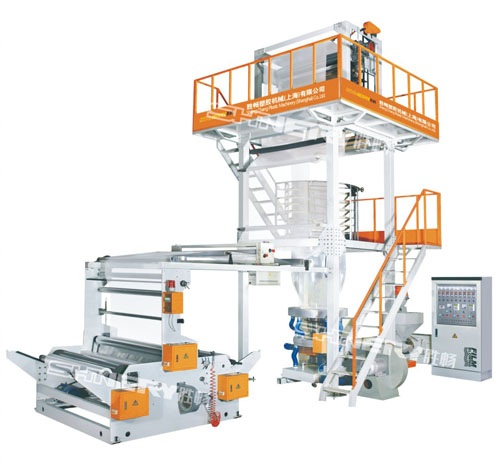

MODEL

SCN/HL-45EZ

SCN/HL-50EZ

SCN/HL-55EZ

SCN/HL-65EZ

SUITABLE MATERIAL

HDPE LDPE LLDPE

FILM WIDTH

300-600mm

300-800mm

400-1000mm

600-1300mm

FILM THICKNESS

HD0.009-0.05mm
LD0.02-0.15mm

0.009-0.05mm
0.02-0.10

0.009-0.10mm
0.02-0.13mm

0.01-0.10mm
0.03-0.15mm

MAX. EXTRUSION OUTPUT                HD
                                                LD

30-45kg/hr
40-50kg/hr

35-50kg/hr
50-60/kg/hr

40-70kg/hr
60-80kg/hr

60-100kg/hr
80-100kg/hr

EXTRUDER

SCREW DIAMETER

φ 45

φ 50

φ 55

φ 65

SCREW L/D LENGTH

30: 1

SCREW MATERIAL

SACM-645/38 CRMOALA

CYLINDER MATERIAL

SACM-645/38 CRMOALA

CYLINDER COOLING

370W× 2

370W× 2

550W× 3

550W× 4

DRIVING MOTOR

15Kw

18.5Kw

22Kw

37Kw

TEMPERATURE CONTROL

3

3

3

4

AVERAGE POWER-CONSUME

18Kw

26Kw

31Kw

45Kw

TYPE OF DIE

DIE SIZE

φ 60/80
φ 150/120

φ 80/100
φ 180/150

φ 100/120
φ 250/200

φ 100/120
φ 300/250

CENTER STEADY STICK

2

TEMPERATURE CONTROL

3

AIR RING

1

AIR BLOWER

1.5Kw

2.2Kw

3Kw

5.5Kw

TAKE-UPUNIT

ROLLER WIDTH

φ 165× 650mm

φ 165× 850mm

φ 165× 1100mm

φ 165× 1400mm

EFFECTIVE WIDTH

600mm

800mm

1000mm

1300mm

TAKE-UP SPEED

10-100m/min

10-100m/min

10-90m/min

10-90m/min

TAKE-UP MOTOR

0.75Kw

1.5Kw

1.5Kw

1.5Kw

HEIGHT ADJUSTABLE TYPE

700mm

WINDING UNIT

TYPE

SURFACE FRICTION TYPE

WINDING MOTOR

6N. m

8N. m

10N. m

16N. m

WINDING SPEED

10-100m/min

10-100m/min

10-80m/min

10-80m/min

OVERALL DIMENSION(L× W× H)

5.0× 2.0× 4.1m

5.0× 2.2× 4.5m

5.5× 2.5× 5.2m

5.8× 2.8× 6.3m
