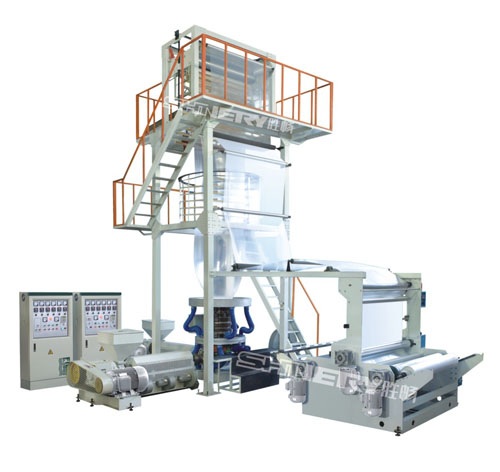

Two-Layer Film Blowing Machine (LDPE, LLDPE, HDPE)
產品型號:SCY-2L
產品特色
SCY/2L TWO-LAYER CO-EXTRUSION FILM BLOWING MACHINE
Performance and Characteristics:
YT/2Ldouble layer film blowing machine plasticates two identical or different raw substances by two extrudes them to the complex machine head, then produces the coextruding molded complex film. By this way, it make possible to enhance the film's physical performance, rigidity, good insulation-proof and impenetrability.
The machine entails advanced consecutive rotation machine head, ensure smooth and homogeneous products, meets the film's quality requirement during the subsequent working procedure of the packing machine or the printer, also is useble for manufacturing the complex bead sheen film, complex hydro-packing film, insulation film, multi-functional farming film, etc. Its application range is gradually widening to the target of plastic product development.
SCY/2L TWO-LAYER CO-EXTRUSION FILM BLOWING MACHINE
Material: LDPE, HDPE, LLDPE
產品規格
MODEL |
SCN-2L45 |
SCN-2L50 |
SCN-2L55 |
SUITABLE MATERIAL |
LDPE LLDPE HDPE |
||
FILM WIDTH |
600-1000mm |
800-1300mm |
1000-1500mm |
FILM THICKNESS |
0.03-0.20mm |
0.03-0.20mm |
0.05-0.20mm |
MAX. SQUEEZING AMOUNT OF SINGLE SCREW ROD |
60kg/hr-90kg |
90kg/hr-120kg |
120kg/hr-150kg |
EXTRUDER |
|||
SCREW DIAMETER |
φ 45/45 |
φ 50/50 |
φ 55/55 |
SCREW L/D LENGTH |
30: 1 |
||
SCREW MATERIAL |
SACM-645/38 CRMOALA |
||
CYLINDER MATERIAL |
SACM-645/38 CRMOALA |
||
CYLINDER COOLING |
370w× 2 |
550w× 2 |
550w× 3 |
DRIVING MOTOR |
18.5Kw/18.5Kw |
22Kw/22Kw |
30Kw/30Kw |
TEMPERATURE CONTROL |
3 |
4 |
4 |
AVERAGE POWER-CONSUME |
40Kw |
50Kw |
70Kw |
TYPE OF DIE |
|||
DIE SIZE |
φ 250/200 |
φ 300/350 |
φ 350/400 |
TEMPERATURE CONTROL |
3 |
3 |
4 |
AIR RING |
1 |
1 |
1 |
AIR BLOWER |
5.5Kw |
5.5KW |
7.5Kw |
TAKE-UPUNIT |
|||
ROLLER WIDTH |
φ 165× 1100mm |
φ 165× 1400mm |
φ 165× 1600mm |
EFFECTIVE WIDTH |
1000mm |
1300mm |
1500mm |
TAKE-UP SPEED |
700mm |
||
TAKE-UP MOTOR |
10-65m/min |
10-65m/min |
10-65m/min |
HEIGHT ADJUSTABLE TYPE |
1.5Kw |
1.5Kw |
2.2Kw |
WINDING UNIT |
|||
WINDING MOTOR |
10N. m |
16N. m |
20N. m |
WINDING SPEED |
10-65m/min |
10-65m/min |
10-65m/min |
OVERALL DIMENSION(L× W× H) |
6.5× 5.5× 6.5m |
7.5× 5.8× 7.5m |
7.8× 6.4× 7.5m |
