blast machines
產品型號：6230P, 4720P,
產品分類：自動化設備/產業機械 / 其他產業機械 / 表面處理設備
產品特色
Portable sand blast machines are mainly used to clean bigger components on-site, like steel structure, bridge, big tank body, used for big tanks vessel repaire, pipe rust removing at oil field, container renew, etc, and generally used in open, or used in very big blast rooms.
The operator controls blasting from a remote control handle at the nozzle. Pressing the handle starts blasting; releasing it stops blasting.
產品規格
Portable sand blast machines are mainly used to clean bigger components on-site, like steel structure, bridge, big tank body, used for big tanks vessel repaire, pipe rust removing at oil field, container renew, etc, and generally used in open, or used in very big blast rooms.
The operator controls blasting from a remote control handle at the nozzle. Pressing the handle starts blasting; releasing it stops blasting.
Portable pressure blasting machines .

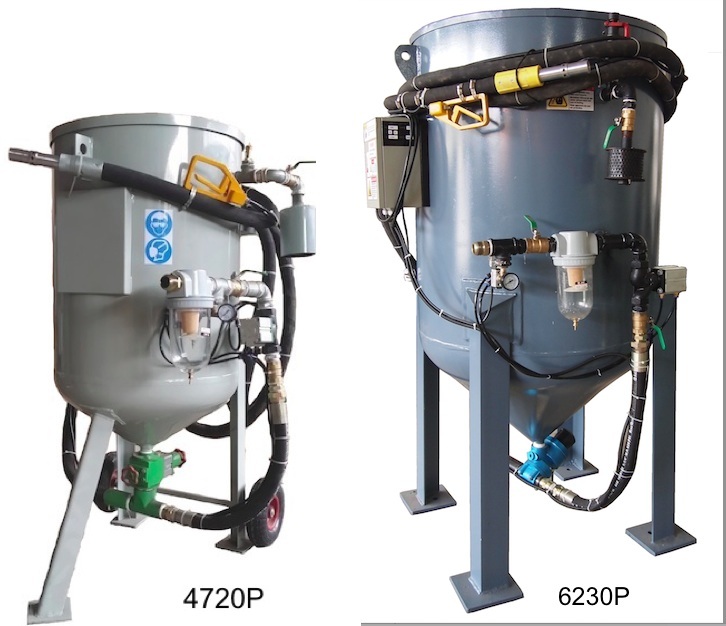

4720P, 6230P to be supplied with pressure blast machine fitted with remote control system, abrasive valve, moisture separator, 10 meter remote control hose, 10 meter heavy duty blast hose with nozzle holder, coupling and venturi boron carbide blast nozzle.
6230(2)P to be supplied with two outlets allows two operators to work without interference.
Portable suction blasting machines .
6060A to be supplied with suction blast machine fitted with electric remote control system, moisture separator, 4 meter remote control line, 4 meter blast hose with nozzle holder, coupling and straight bore boron carbide blast nozzle.
4720P and 6060A are mobiled on 3 wheels or 2 wheels and one leg, or 3 wheels, or in stationary upon request, 6230P and 6230(2)P are supplied in stationary only.
| Model | 4040P |
4720P |
6230P |
6230(2)P |
4848A |
6060A |
|
Pot Diameter (mm) |
400 |
600 |
900 |
900 |
480 |
600 |
| Heigh (mm) | 1000 | 1450 | 1900 | 1900 | 900 | 1200 |
| Weight (kg) | 65 | 300 | 400 | 450 | 50 | 255 |
|
Capacity (L) |
80 |
300 |
1000 |
1000 |
130 |
200 |
|
Outlet |
1 |
1 |
1 |
2 |
1 |
1 |
| Blast hose ID (mm) | 3/4 | 1-1/4" | 1-1/4" | 1-1/4 | 1/2" | 1/2" |
|
Compressed air consumption (m3 /min) |
4.5 |
4.5 |
4.5 |
9.0 |
1.5 |
1.5 |
|
Woking pressure (bar) |
5-7 | 5-7 | 5-7 | 5-7 | 2-7 | 2-7 |
|
Remote control |
Pneu. or elec. | Pneu. or elec. | Pneu.or elec. | Pneu.or elec. | Elec. | Elec. |
| Portable or Stationary | portable | portable | Stationary | Stationary | portable or stationary | portable or stationary |
| Options: 1. Cover 2. Screen 3. wet blast nozzle 4. Protective cloth with Hood 5. Respiratory filter |
||||||
