wet blast cabinets dust free blasting
產品型號：6868W 9080W 9080W 1212W
產品分類：自動化設備/產業機械 / 其他產業機械 / 噴砂機
產品特色
Wet blast cabinets consist of Cabinet enclosure, exhauster and filter, and polyurethane sand pump, can available withstainless steel. Cabinet enclose water and blasting environment to provide efficient blast cleaning while maintaining a clean surrounding work area.
Wet blasting can be used for cleaning and finishing all kinds of parts, produce a smooth, a sericeous surface, a bright shine appearance.
Compared to dry blast operation, wet blast does not produce static electricity, is also non-hazardous, dust-free and prevents hours of messy cleaning...
Features:
1. Dust-free wetblast reduces worker exposure to dust and static electricity build-up generated by dry blasting.
2. 24" long blast gloves wear resistance rubber and protect operator hands.
3. Stainless Steel cabinet or reinforced fiberglass cabinet provide rust-free blasting environment.
4. Safety interlocks interrupt blasting if either door is opened.
5. Spotlights brightly illuminates work chamber.
6. exhauster maximizes visibility inside cabinet.
7. Electric powered Windscreen wipers maintains clean window for clear view of work.
8. Foot pedal activates blast process and minimizes operator fatigue.
9. Built-in fingertip-activated squirt gun rinsing the parts inside the working cabinet.
10. Pressure regulator, gauge, and electric switch mounted within easy
產品規格
|
Model |
6868W |
9065W |
9090W |
1212W |
|
|
Dimension, mm |
690x690x1560 |
900x650x1680 |
900x900x1850 |
1200x1200x1900 |
|
|
Blast chamber, mm |
660x540x400 |
870x630x650 |
870x870x830 |
1050x1050x1050 |
|
|
Door opening, mm |
650x340 (front) |
470x610 (side) |
570x630 (side) |
950x950 (side) |
|
|
view Window, mm |
650 x 340 |
570 x 230 |
570 x 230 |
500 x 300 |
|
|
Window wiper |
penumatic |
penumatic |
penumatic |
penumatic |
|
|
Illuminance |
18W |
18W x 2 |
18W x 2 |
80w x 2 |
|
|
Pump motor |
0.55KW |
1.1KW |
1.1KW |
1.1KW |
|
|
Exhauster Fan |
38W |
38W |
38W |
40W |
|
|
Media tank |
water |
20 kg |
25 kg |
25 kg |
25 kg |
|
media |
4 kg |
5 kg |
5 kg |
5 kg |
|
|
Cabinet materials |
stainless steel |
||||
|
Blast gun |
one including boron carbide nozzle dia 8mm. |
||||
|
Squirt gun |
one dia 2mm. |
||||
|
Air source |
5-7bar(kg/cm2), 0.8-1.2m3/min. |
||||
|
Optional |
turntable dia |
--- |
500mm manual |
600mm manual |
800mm maunal |
|
800mm electric 750W |
|||||
|
1. Work car manual or powered & track assembly 2. Pneumatic vertical lift door |
|||||

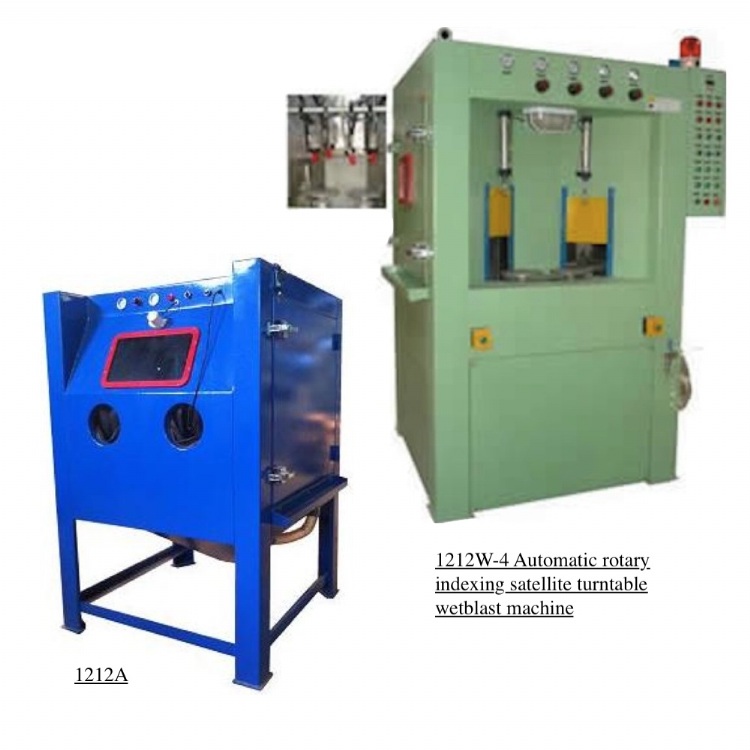

2/. Automatic satellite turntable rotary indexing wetblast machine
Automatic rotary indexing satellite turntable wetblast machine consists of a large cabinet enclosure, a indexing turntable with eight rotary satellites, gun oscillating system, four automatic suction blast guns, sand pump and PLC control system, etc
It's suitable for automatic precise repeatable blast processing surface of small size components with cones or cylinder shape with no part-on-part contact possible, used for cleaning and finishing all kinds of parts, produce a smooth, a sericeous surface, a bright shine appearance.
Large working chamber allows more options for gun placement and more room for maintenance.
Turntable comes two-station indexing, two parts in each of the blast, and load positions.
PLC controlled Wetblast Cabinet with 8 work piece holding satellites.
Two blasting sections with automatic oscillating guns angled for targeted blasting.
Workpiece moves in a rotary motion during oscillated blasting for complete coverage.
During blasting the two processed work piece stops at the entry bay for unloading and 2 new work pieces can be loaded.
Features:
- 100% stainless steel construction
- Pneumatic & electrical control panel for work piece door entry
- PLC controls work piece rotary motion, blast gun oscillation for effective blasting. Indication panel displays all movements
-
Specifications:
Model: 1212W-4
Main cabinet: L1200xW1200xH2000
Indexing table:
Dia. 800mm
speed: 3rpm
motor 750W
Satellite:
Dia. 150mm
speed: 0-60rpmmotor: 750W
Blasting gun oscillating system: motor 750W
speed: 6.5rad/s
Blast gun:
4 sets
Blast method:
suction blast.
Processable parts:
Dia150 x H200mm max, weight: 200kg max.
