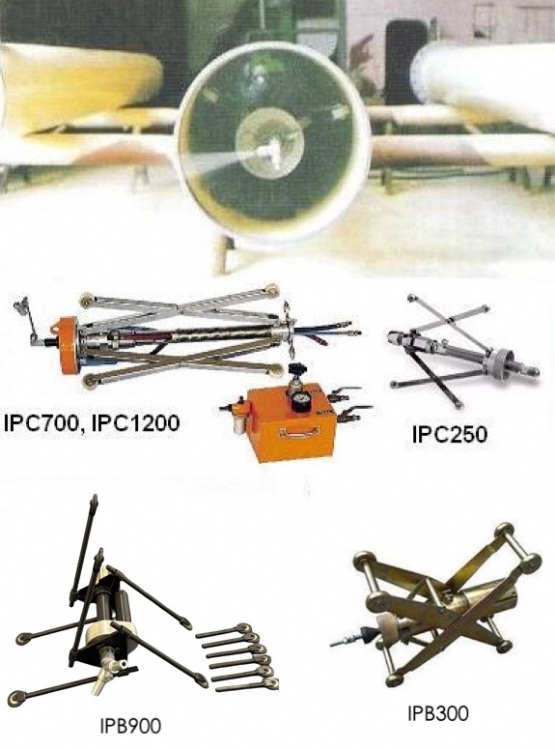

Internal pipe cleaning coating tools
產品型號：IPB300 IPB900 IPB1200 IPC250 IP700 IPC1200
產品分類：自動化設備/產業機械 / 其他產業機械 / 噴砂機
產品特色
Internal pipe blasters are specially designed to blast internal surface of pipes diameter from 17mm to 1200mm.
Interior pipe coater is specially developed for coating of the interior surface of pipe or tube without need to rotate pipe or tube.
產品規格
Internal pipe blasters are specially designed to blast internal surface of pipes diameter from 17mm to 1200mm. The blaster is connected to a blast machine in place of a standard blast nozzle.
To blast clean the interior of a pipe, connect the blaster to a blast machine firmly, put the blaster into the pipe and pressurize the machine. Push the blaster through the pipe, abrasive and blasted material will be blown out the other end
|
Model |
Applicable Pipe ID, mm |
|
IPB50 |
17-50 |
|
IPB100 |
30-100 |
|
IPB150 |
60-150 |
|
IPB300 |
76-300 |
|
IPB900 |
300-900 |
|
IPB1200 |
900-1200 |
Interior pipe coater is specially developed for coating of the interior surface of pipe or tube without need to rotate pipe or tube.
Interior pipe coater IPC1020, IPC2045 is specially developed for coating of the interior surface of large pipe or tube without need to rotate pipe or tube. The spray system is installed on an air-driven vehicle.
The speed of vehicle and rotary speed are adjustable according to the demands.
|
Model |
IPC250 |
IPC700 |
IPC1200 |
IPC1020 |
IPC2045 |
|
Processable pipe, ID mm |
50-300 |
250-700 |
300-1200 |
1000-2000 |
2000-4500 |
|
Air inlet pressure, Mpa |
|
|
|
0.4-0.6 |
0.4-0.6 |
|
Rotary speed, rpm |
|
10-100 |
10-100 |
6-36 |
6-36 |
|
Move speed, mm/min |
|
|
|
320-1200 |
320-1200 |
|
Dimension, mm |
50x280 |
250x250x620 |
300x300x950 |
560x470x1000 |
560x470x2200 |
|
Weight, kg |
8kg |
33 |
42 |
55 |
60 |
|
Remark |
with manual spray gun and 5 meter high pressure hose |
with control panel, filters, pressure gauge, pressure regulator, and 2 pcs of 15 meter long PU hoses, etc. |
with air-driven vehicle, control panel, filters, pressure gauge, pressure regulator, and spray gun, etc. |
||
