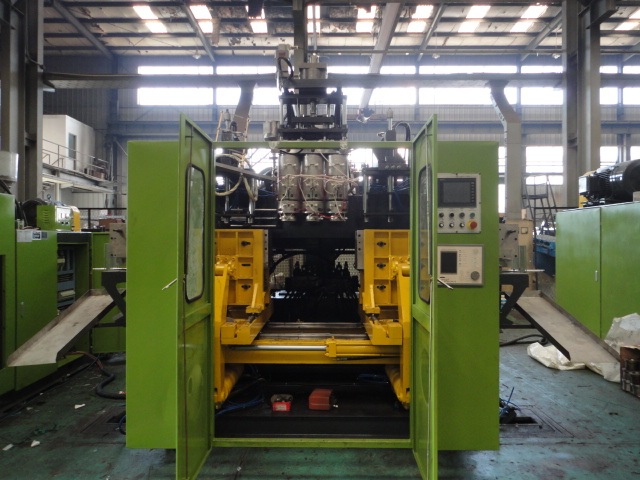

2L-12L double satation double layer extrusion blow molding machine-China Plastic machinery
產品型號：PGB series
產品特色
MODE: Series of PGB12LII
The blow molding machine mode PGB12LII can produce bottle, kettle, can, bucket etc. The machine is especially designed for producing with material PE, PVC, PP and so on. The productive capacity can reach 850 mold/hr (idle cycle).
Video: http://www.youtube.com/kingswelgroup
Website: http://www.kingswel.com/kingswel/english/0.05-12l_4.asp
BASIC INSTALLATION INCLUDING
● Die head: centre-feed die head
● Extrusion system: Adopt world-famous brand automatic temperature controlling device. Drive the screw with electromagnetism motor reducer to realize stepless regulating.
● Clamping device: Adopt bi-directional synchronous clamping device with double axis single cylinder to stabilize equipment well
● Blowing device: with upper blowing type
● Hydraulic system: The whole hydraulic system adopts world-famous brand controlling components and proportional controlling circle.
產品規格
Mr Aladdin Âu
China head office +86 - 15895594220
Viet Nam office +84 - 0975118000
Y! Messager / MSN Live: auvuchi
Skype: KingswelGroup QQ: 1123006779
Tel: +86-512-58674468/58698355
Fax: +86-512-58698356
Website: www.kingswel.com , http://kingswel.znn.vn
Email: [email protected] , [email protected]
Video: http://www.youtube.com/kingswelgroup
Zhangjiagang HuaFeng Heavy Duty Equipment Mfg. Co., Ltd.
Zhangjiagang Kingswel Machinery Exp. & Imp. Co.,Ltd.
Address: Zhangjiagang Economical Development Zone, Zhangjiagang, Jiangsu, China
The technical parameter and disposition PGB12LⅡmodel PGB12LⅡ/1 PGB12LⅡ/2 PGB12LⅡ/3 PGB12LⅡ/4 Basic parameter material PE、PP、PA… PE、PP、PA …… Max. volume 12L 5L 2L 800mL Cycle time 800PC/HR（idle cycle） Dimension 2.8×2.1×2.3(m) Weight 7T General power 49.3KW Average consumption 22KW Plasticizing system Screw diameter ∮70mm Screw L/D 24 Plasticizing capacity 75Kg Heating zone 3 Heating power 12.6KW Extruder motor power 22KW Die head Center spacing --- 240mm 150mm 110mm Heating zone 3 5 5 5 Heating power 6KW 6.4KW 6.8KW 7.2KW Max diameter of die head ∮140mm ∮90mm ∮75mm ∮60mm Clamping Clamping force 110KN Spacing of mould plates 240∼620mm Mould plate dimension(W×H) 530×510mm Electrical control Temperature control Data communication Craft time Data communication Working pressure Proportion pressure parameter control Hydraulic system Oil pump motor power 11KW System pressure 10MPa pneumatic Air supply pressure 0.6Mpa Air source consumption 0.8M3/min cooling Water supply pressure 0.2—0.3MPa Water supply flow 45L/min 2. Main Components for reference Name Brand Notify Gearbox Jiangsu GuoMao Motor Abode Motor Barrel and screw 38CrMoAlA nitrogen steel Inventor Emerson Heater Casting aluminum heater; die head is mica heater Die head 35CrMoAIA Guideline Beeline + roll guideline Sealing Hy Programmer Mitsubishi PLC Screen Tai wan screen Temperature controller Tai wan I-7118RP Relay SCHNEIDER Air switch SCHNEIDER Propinquity switch Tai wan riko Power MEAN WELL Pump HITECH Valve Tai wan HITECH PIPES AND CONNECTION ITALY / ningbo Sealing Hy Pneumatic TaiwanAIRTAC
