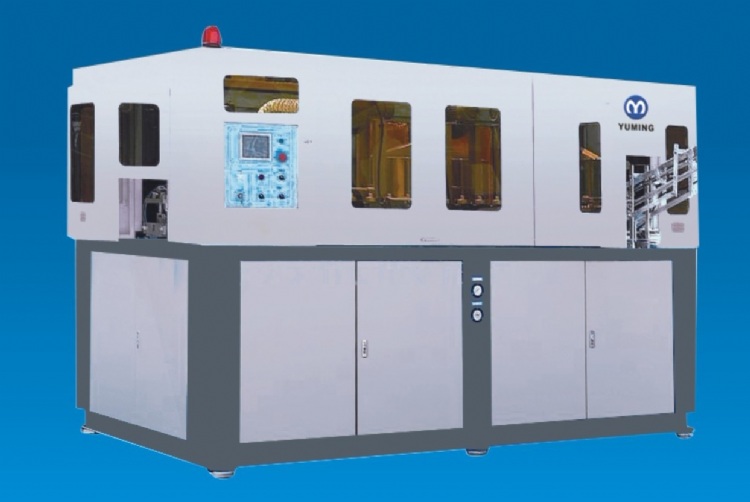

• PET bottle making machine-automatic Stetch blow molding machinery-Kingswel group



PET bottle making machine-automatic Stetch blow molding machinery-Kingswel group



產品型號：ARA

產品分類：塑橡膠產業機械 / 塑膠機械 / PET瓶胚射出機



立即線上詢問





產品特色



Technical data and parts instructions of blow molding machine
TYPE ITEM YM-B600 YM-B600-2 YM-B2000 YM-B2000-4
Container specification Cavity number 1cavities 2 cavities 1cavities 4cavities
Theroretical output 1100-1400pcs/hr 1500-2200 pcs/hr 1000-1300 pcs/hr 3800-44000 pcs/hr
Max container volume 0.6L 0.6L 2L 2L
Max outer diameter of the mouth or the bottle 50mm 50mm 50mm 50mm
Max container diameter 86mm 86mm 105mm 105mm
Max container height 260mm 260mm 350mm 350mm
Electrical system specification Lamp tube number 14pcs 28pcs 28pcs 56pcs
Max heating power 21kw 42kw 42kw 84kw
Electric quantity of machine installation 23kw 44kw 44kw 88kw
Actual electricity consuming 10kw 14kw 12kw 30kw
Air pressure specification Working pressutre 7kg/c㎡ 7kg/c㎡ 7kg/c㎡ 7kg/c㎡
Low-voltage consumption 800Ltr/min 1000 Ltr/min 900 Ltr/min 2000 Ltr/min
Blow pressure ≤30kg/c㎡ ≤30kg/c㎡ ≤30kg/c㎡ ≤30kg/c㎡
High-pressure power 1200-1600Ltr/min 1500-2000Ltr/min 1200-1600Ltr/min 3000-3500Ltr/min
Machine specification size 2.1×1.5×1.7(m) 2.3×1.5×1.7(m) 2.2×1.5×1.7(m) 3×1.95×2(m)
weight 1.5ton 1.8ton 1.6ton 3.2ton
