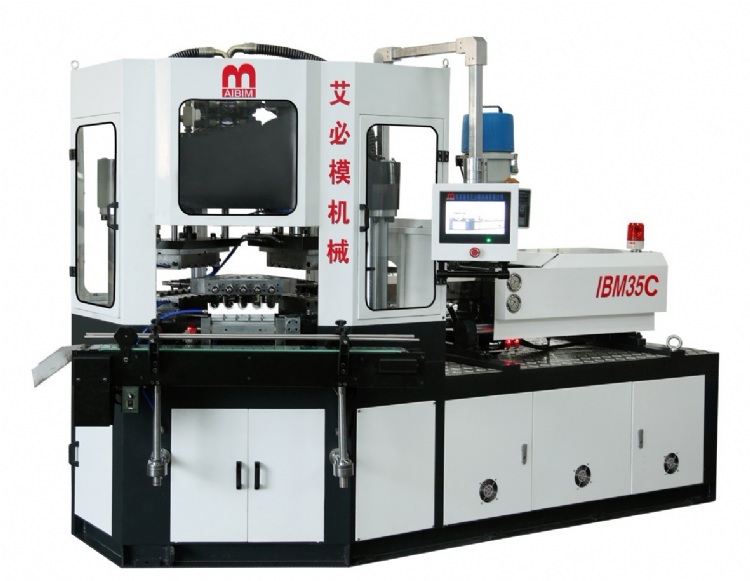

IBM blow molding machine- deyedrops bottle hight speed plastic machine



產品型號：IBM45

產品分類：塑橡膠產業機械 / 塑膠機械 / 射吹拉中空成型機



立即線上詢問





產品特色



TECHNICAL SPECIFICATIONS

NO ITEM UNIT IBM25 IBM35 IBM45 IBM60
1 Diameter of screw MM 35 40 45 50
2 Injection weight G 146 176 241 280
3 Heating capacity KW 6.5 6.5 10 10.8
4 Control area of electric-heating QTY 3 3 3 -
5 Clamping force of injection KN 280 350 450 600
6 Clamping force of blow KN 30 30 78 89
7 Opening stroke of mold platen MM 120 120 120 140
8 Injector stroke MM 200 220 160 190
9 Max. plate size of die(L*W) MM 350*240 420*300 580*390 740*390
10 Min. dia. thickness(H) MM 180 180 240 280
11 Motor power KW 15 15/11 22 30
12 Heating capacity of mould KW 2.5 3.6 3.6 6
13 Pressure of hydraulics system MPA 14 14 14 14
14 Min. working pressure of compressed air MPA 0.8 0.8 1.0 1.2
15 Discharge rate of compressed air M3/min ≥0.7 ≥0.7 ≥0.8 ≥1.0
16 Consumption of cooling water M3/hr 3 3 3 5
17 Dimension of machine (L*W*H) MM 3100*1100*2200 3100*1200*2200 4000*1970*2350 4200*1340*2350
18 Machine weight T 2.5 3.0 5 6.8
19 Suitable bottle Range ML 3-500 3-600 5-600 5-500
20 Max. Height of bottle MM ≤145 ≤175 ≤190 ≤200
21 Max. dia. of the bottle MM ≤60 ≤80 ≤80 ≤60
22 Total power KW 20 20/25 35 40
