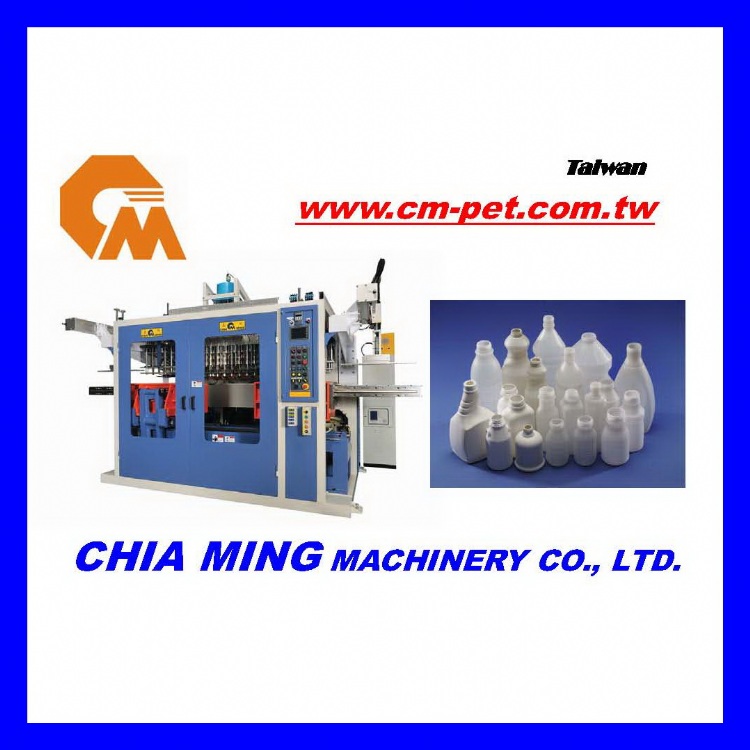

Blow Moulding Machine
產品型號：CM-90EH2D
產品特色
Powerful toggle mold clamping system combined with 8 die-head design. It can produce any kind of small and medium container at high speeds. Available to equip with auto deflashing device and take-out robot to achieve fully automatic and
highly efficient production. Or it can equip with specialized take-out robot and conveyor to take out products from single side in order to have convenient production-line formulation.
產品規格
Model: CM-90EH2D
-Material to be used: PE/PP
-Screw diameter: 90mm
-L/D ratio: 1/28
-Screw speed range(PE): 15-60rpm
-Inverter motor: 50HP
-Max. extrusive capacity: 90kgs/hour
-Heating zone (barrel): 3
-Heating capacity (barrel): 20.4kw
Diehead:
-Heating zone (diehead): 7
-Heating capacity (diehead): 42.9kw
-Double mold center distance: 100mm
Total power consumption: 100kw
Weight of machine: 10.5ton
All specifications and designs are subject to change without notice.
