放大圖片

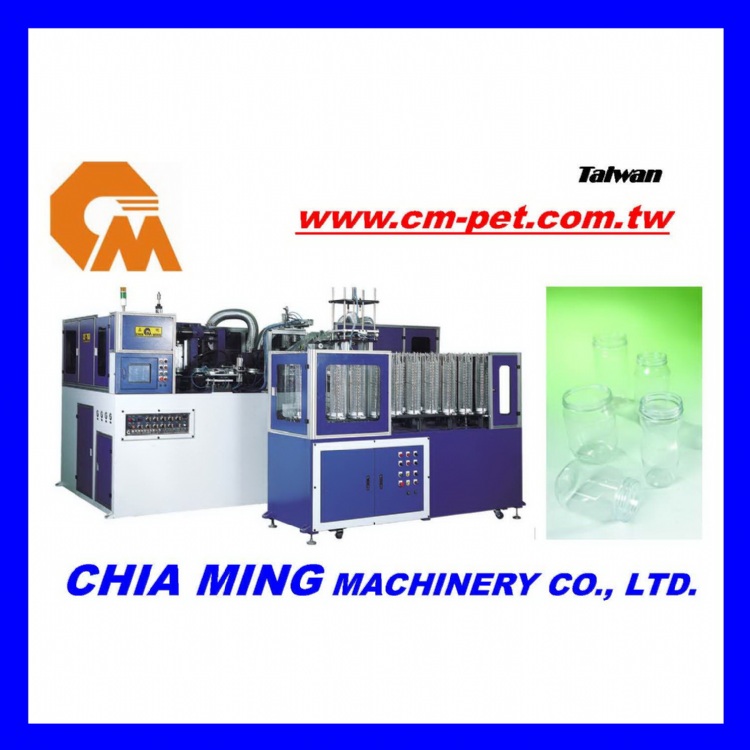

PET Blow Moulding Machine

產品型號：CMA-2000CD

產品分類：塑橡膠產業機械 / 塑膠機械 / 寶特瓶拉吹機

立即線上詢問

產品特色

This is a new generation of fully automatic and versatile machine for mass production of PET bottles with volumes up to approximately 6L. Ideally suitable for large scale factoris and for applications where stringent quality requirements have to be met. Substantial reduction in operating cost is achieved by saving of manpower.

-Preform Infeed and Unscrambler
Orientation and delivery of preforms is in an orderly fashion to the machine. Accurate position control of preform is achieved by pneumatic system.

-Bottle Discharge System
Bi-axially oriented bottles from the moulds are picked up by robotic arms and placed in an upright position on an optional in-line conveyor or leak testing systems.

-Preform Heating
Accurate temperature control of infrared heaters in various zones of the oven is achieved by electronic control. Rotation of preform holding mandrels enables the circumference of preform at ach zone to be evenly heated.

-Human Machine Interface, Touch Screen Control System
Computer touch screen communicates with the PLC. All actions of the machine can be seen on the screen. System has many sets of memories. The system diagnoses and displays the problems on the scren to make trouble shooting easier.
